Anchor winch QUICK Hector – HC3
Recommended price: 2.333,75 € Shop price: 1.633,00 €
Description

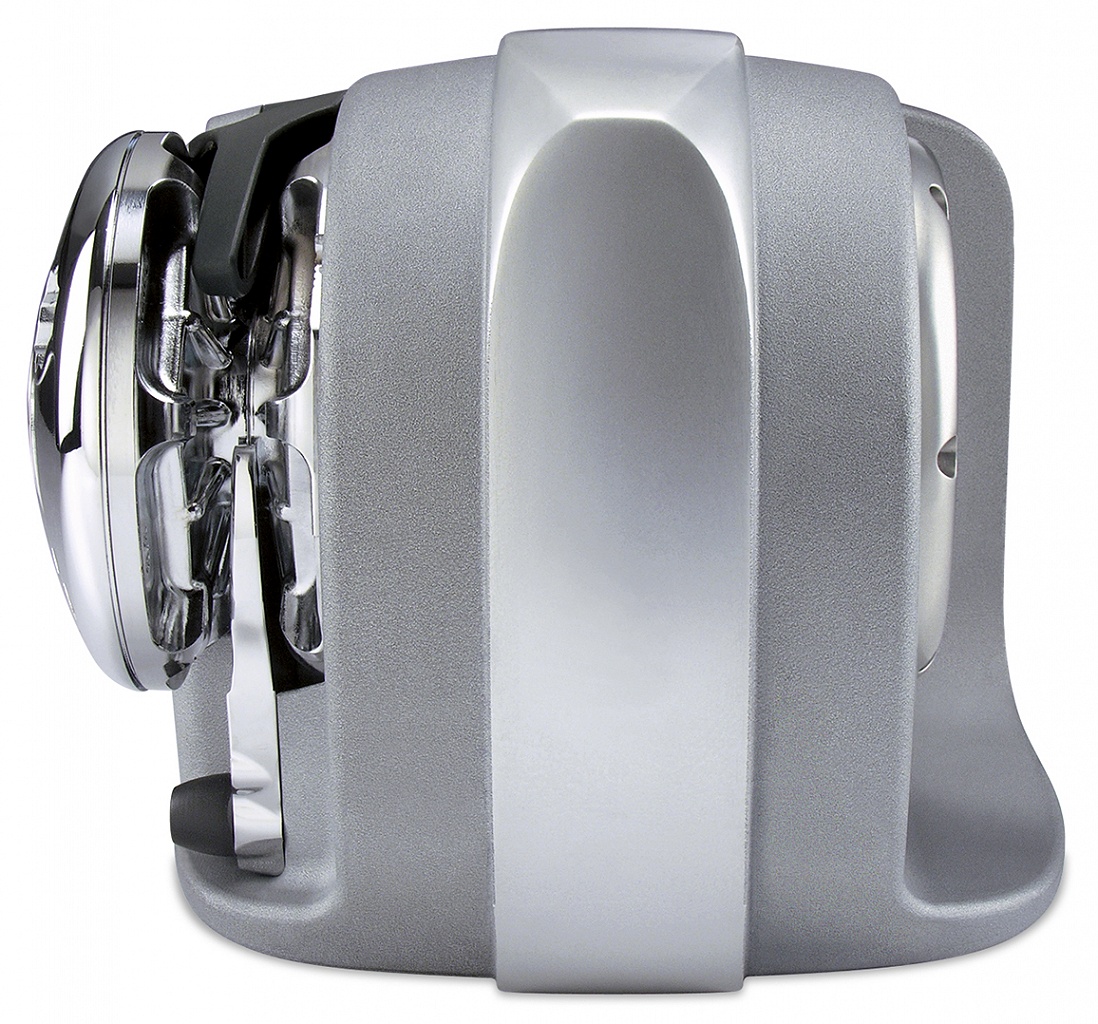

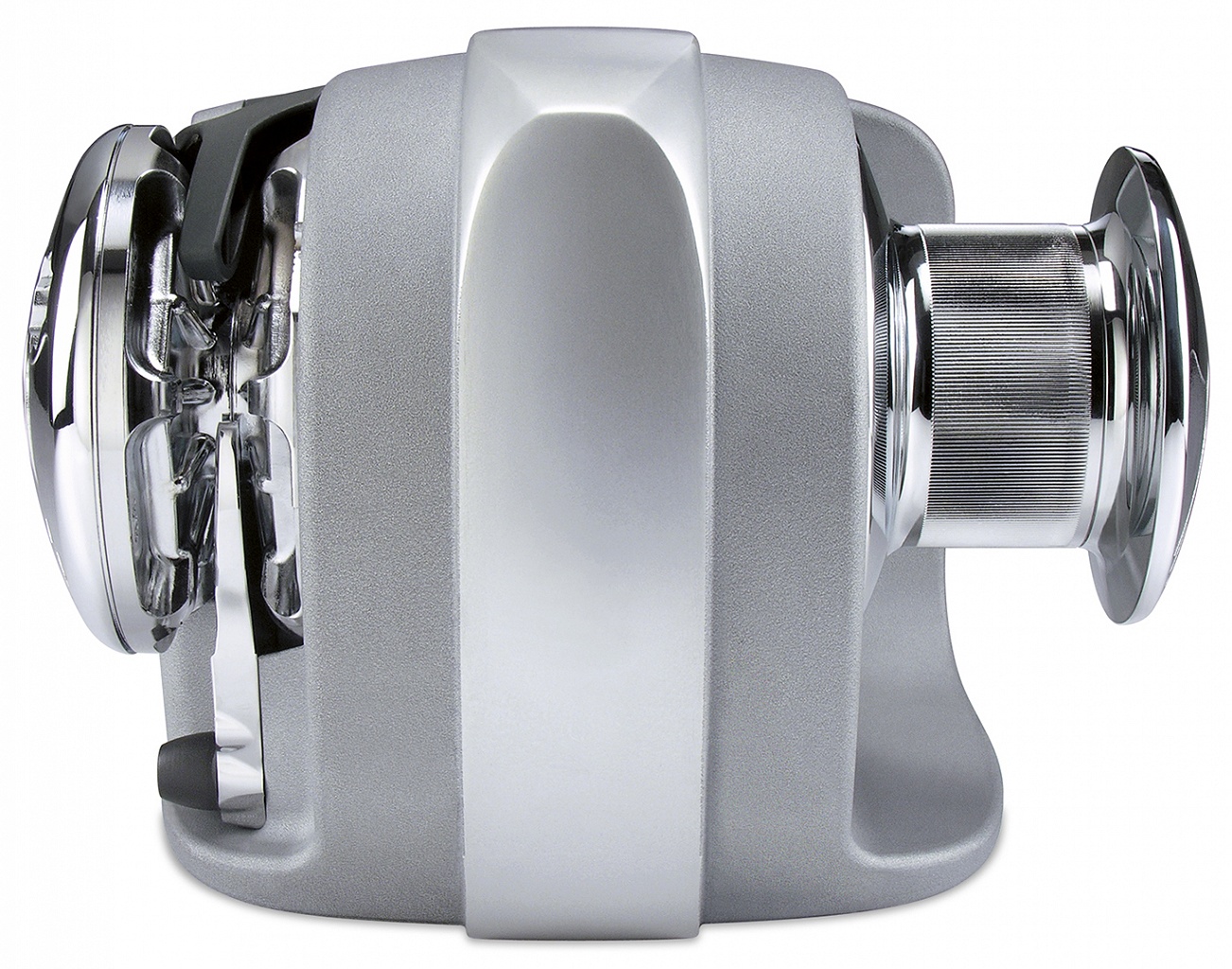

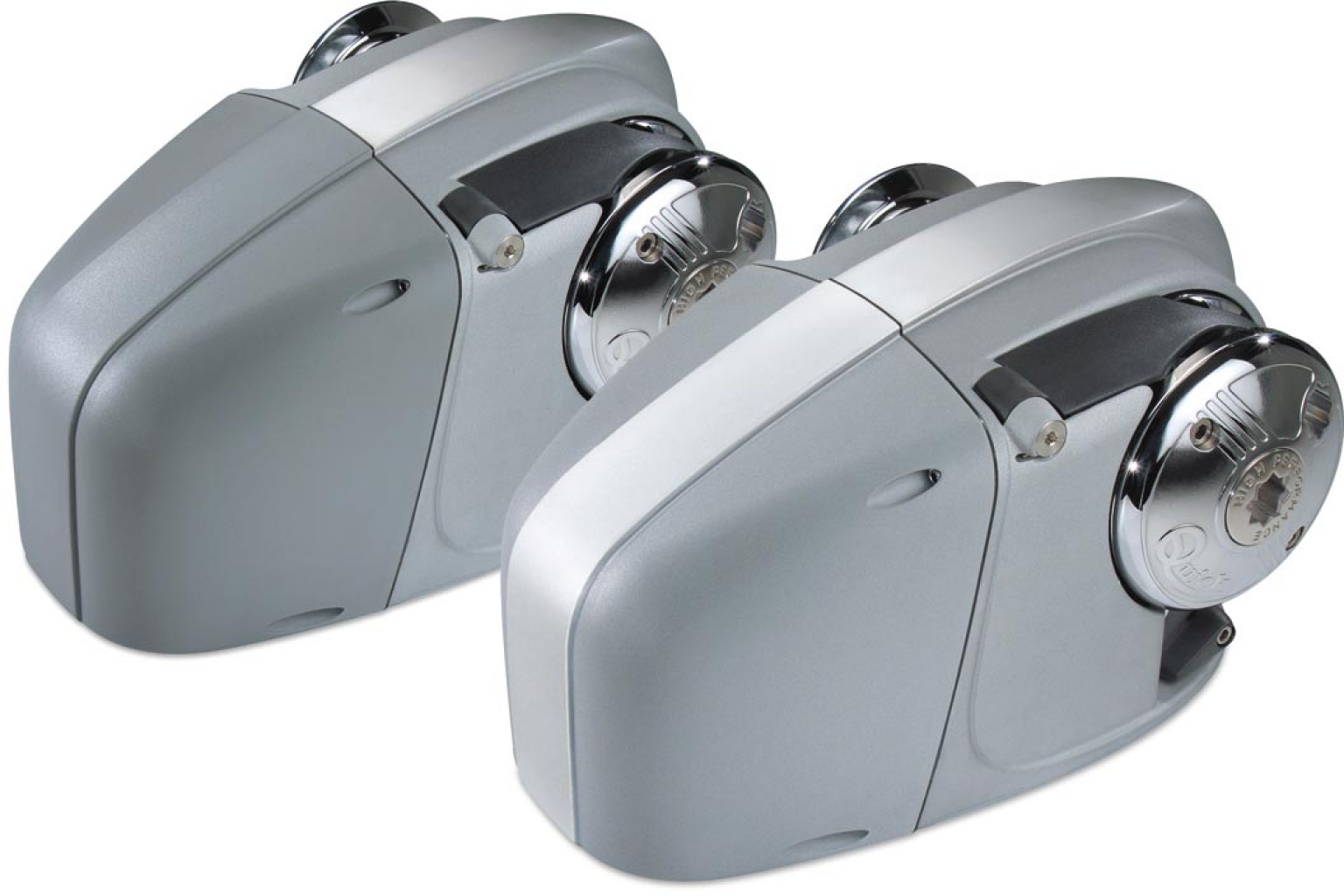

Quick Hector (HC3) – Deck model anchor windlass with horizontal axis. Intended for boats from 10 to 15 meters. HC3 comes in different variants, 1000W and 1500W models are available, with drum (rope attachment) or without, 8mm or 10mm sprocket, 12V or 24V. It comes complete with a switch and a handle.
Technical specifications of variants
SKU: HC1012
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 23.9 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images

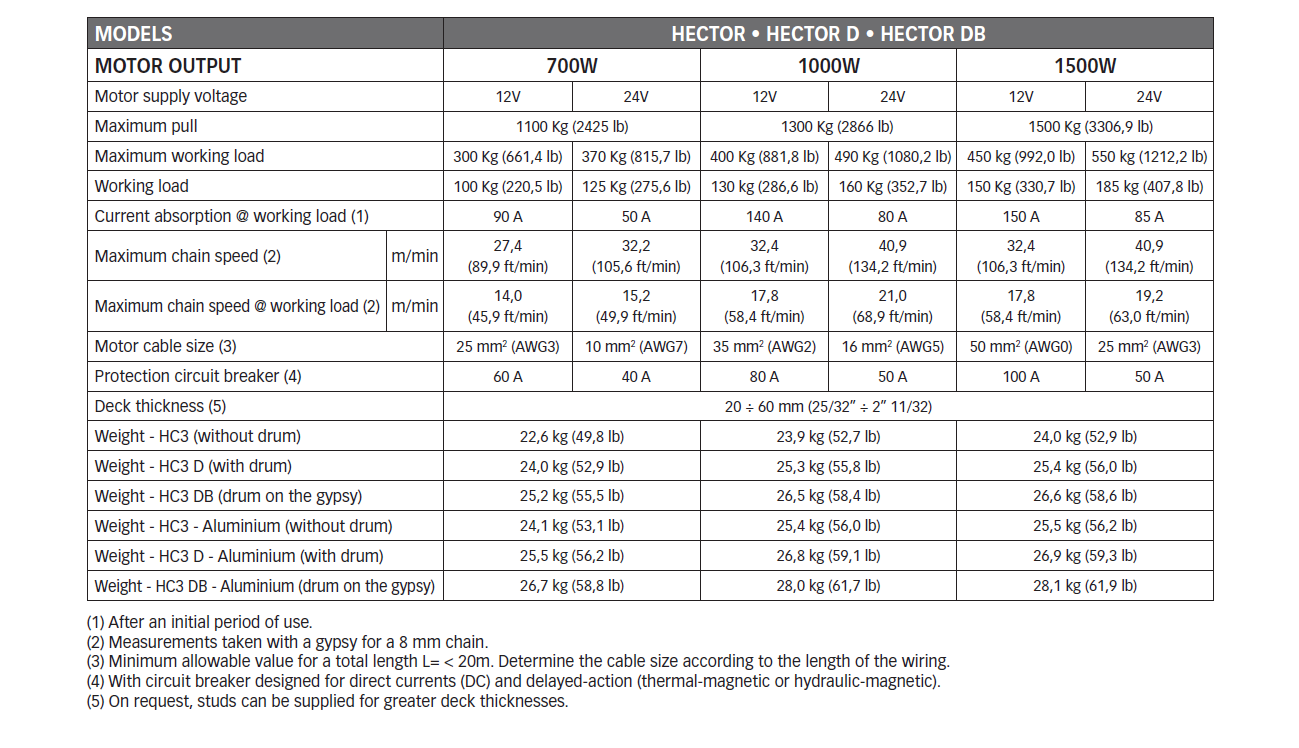

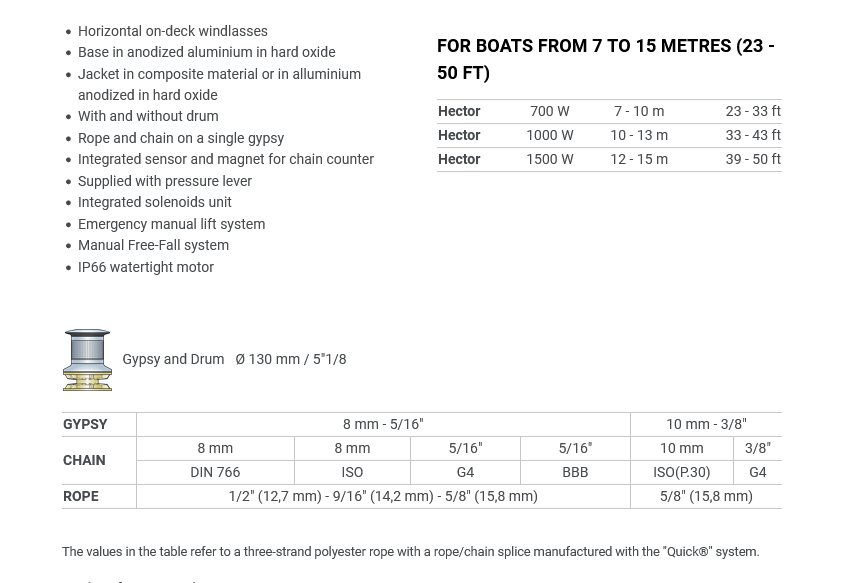

Specifications

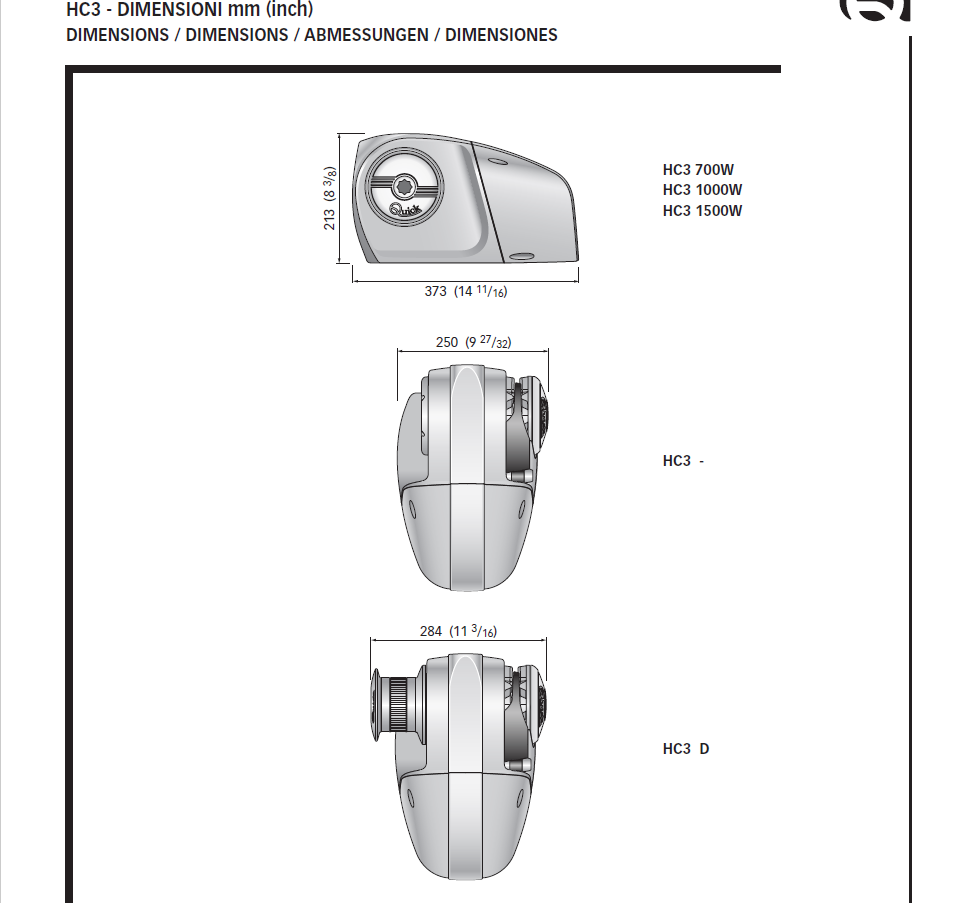

Dimensions

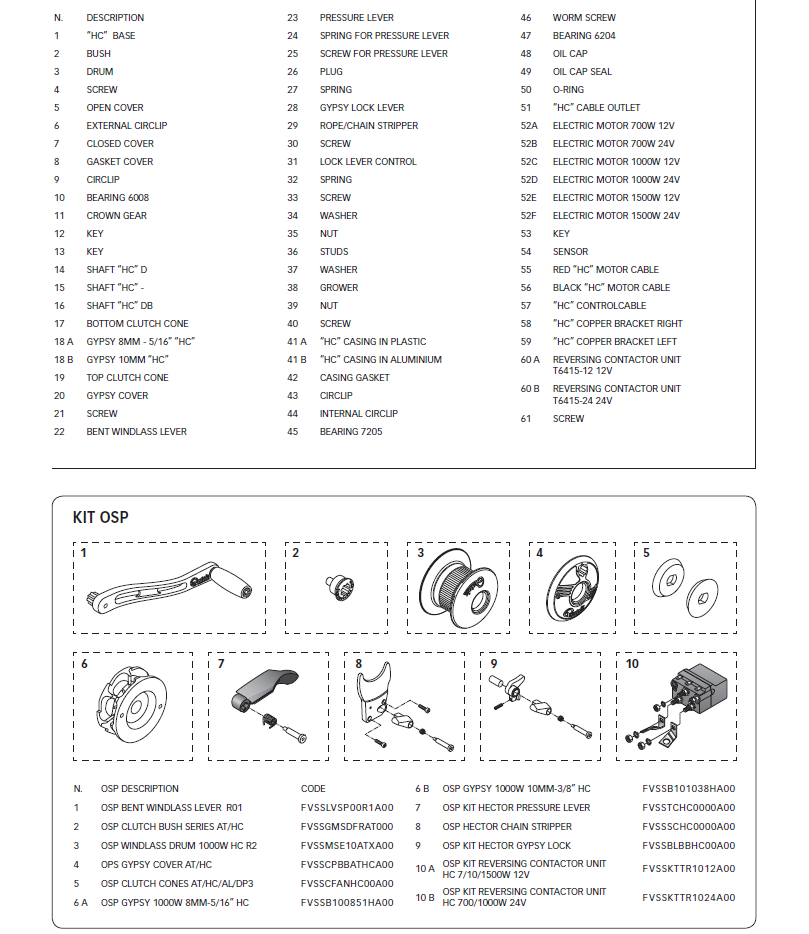

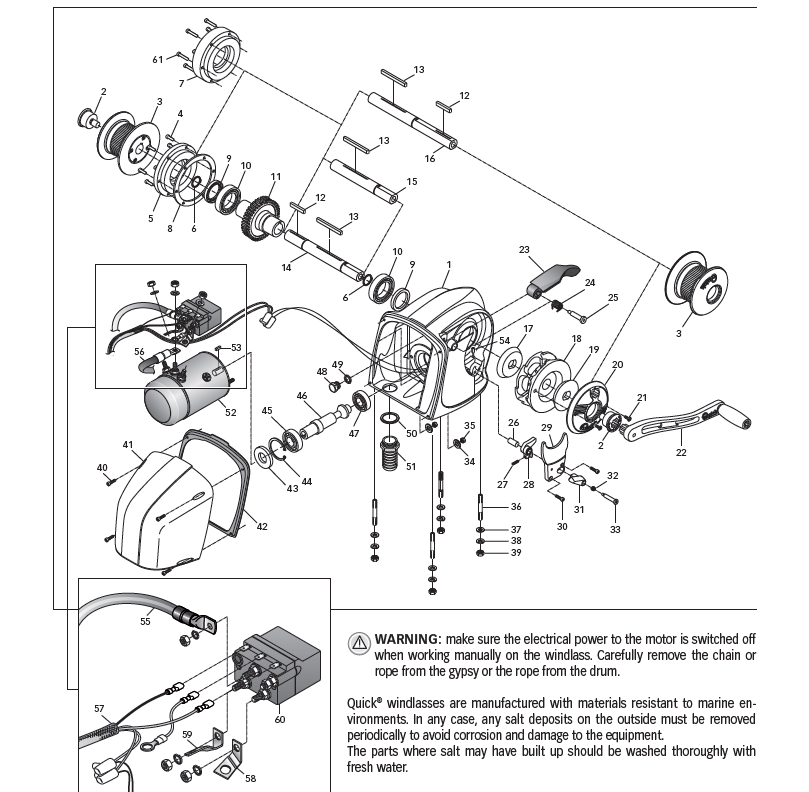

Components and spare parts
Drill schemes
SKU: HC1012
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 10mm |
| Weight (kg) | 23.9 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1012D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 25.3 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1012D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 10mm |
| Weight (kg) | 25.3 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1024
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 23.9 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1024
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 10mm |
| Weight (kg) | 23.9 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1024D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 25.3 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1024D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 10mm |
| Weight (kg) | 25.3 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1512
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1500W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 24 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1512
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1500W |
| Voltage (V) | 12V |
| Sprocket | 10mm |
| Weight (kg) | 24 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1512D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1500W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 25.4 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1512D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1500W |
| Voltage (V) | 12V |
| Sprocket | 10mm |
| Weight (kg) | 25.4 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1524
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1500W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 24 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1524
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1500W |
| Voltage (V) | 24V |
| Sprocket | 10mm |
| Weight (kg) | 24 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 250 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1524D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1500W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 25.4 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Drill schemes
SKU: HC1524D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1500W |
| Voltage (V) | 24V |
| Sprocket | 10mm |
| Weight (kg) | 25.4 |
| Length (mm) | 373 |
| Height (mm) | 213 |
| Width (mm) | 284 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
