BTQ 250 – DC Thruster QUICK KIT FOR AFT THRUSTER

Recommended price: 6.745,54 € Shop price: 4.721,00 €

SKU: 75 Categories: , Tags: , , , , ,

Description

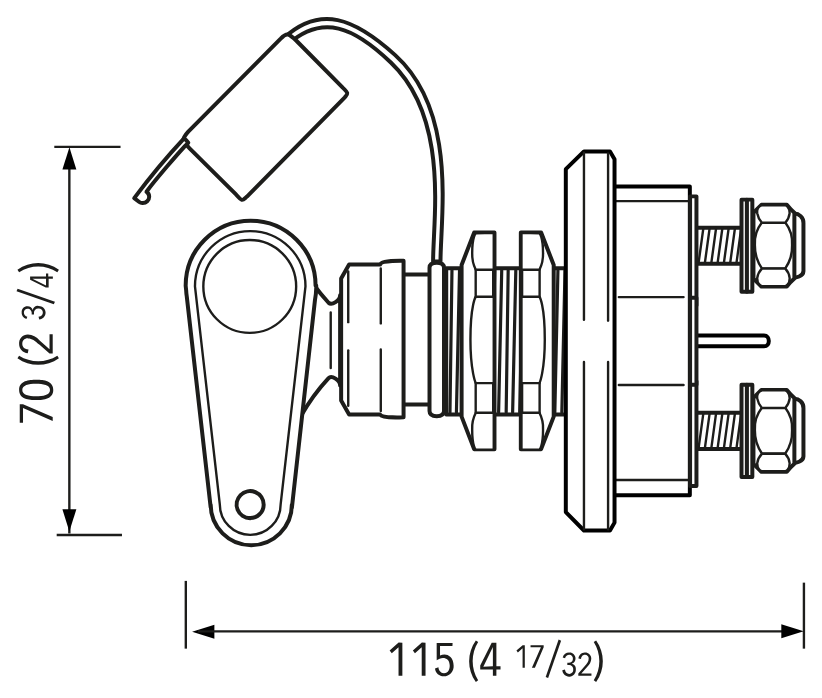

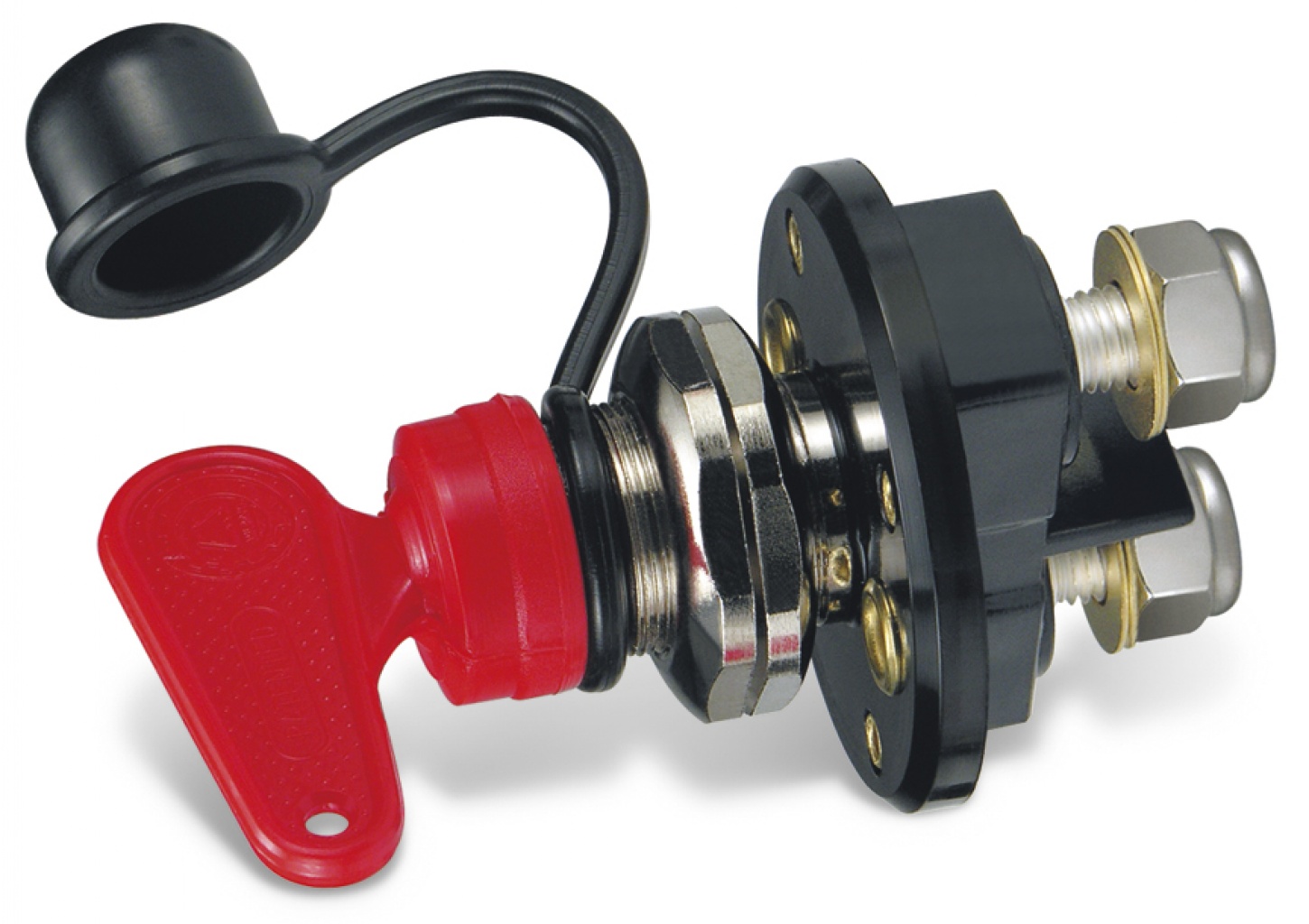

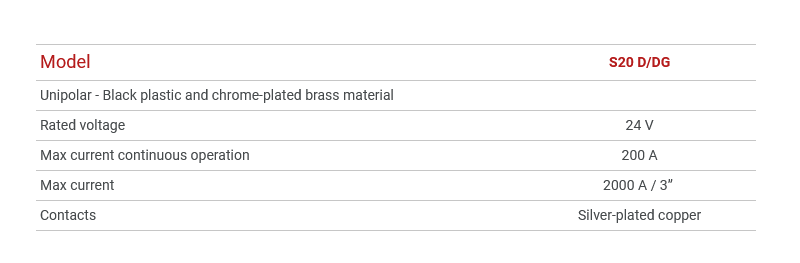

This SET includes BTQ 250 thruster with two propellers, Stern (STERN) tunnel, joystick control with cable, fuse with bracket, and battery switch. Available sets are: – BTQ 250-120 SET (120 Kgf – 6500W – 12V/24V – Ø 250mm) – BTQ 250-140 SET (140 Kgf – 8000W – 24V – Ø 250mm) – BTQ 250-240 SET (240 Kgf – 10000W – 24V – Ø 250mm)

Technical specifications of variants

SKU: BTQ2512012 STERN KOMPLET

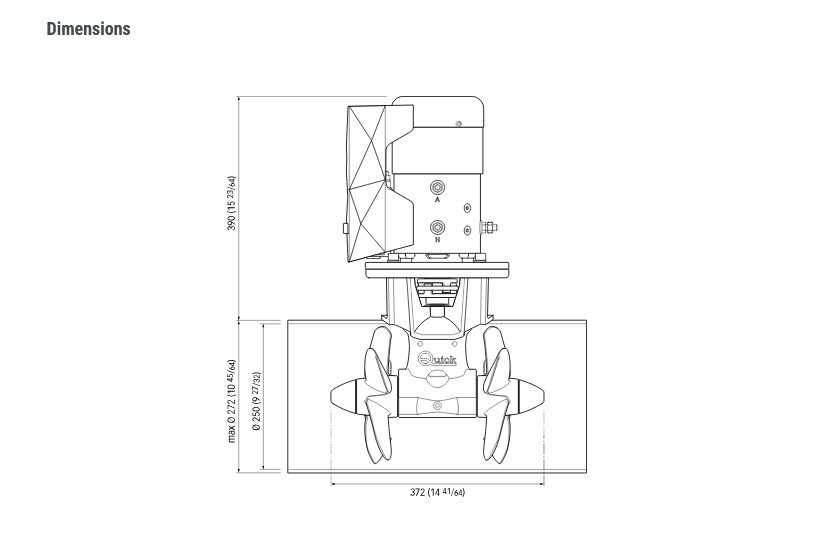

ModelBTQ 250-120 SET
Power120 Kgf - 6500W
Voltage (V)12V
Weight (kg)47
Length (mm)1000.0
Height (mm)1000.0
Width (mm)1000.0
BrandQuick

Images

Specifications

Dimensions

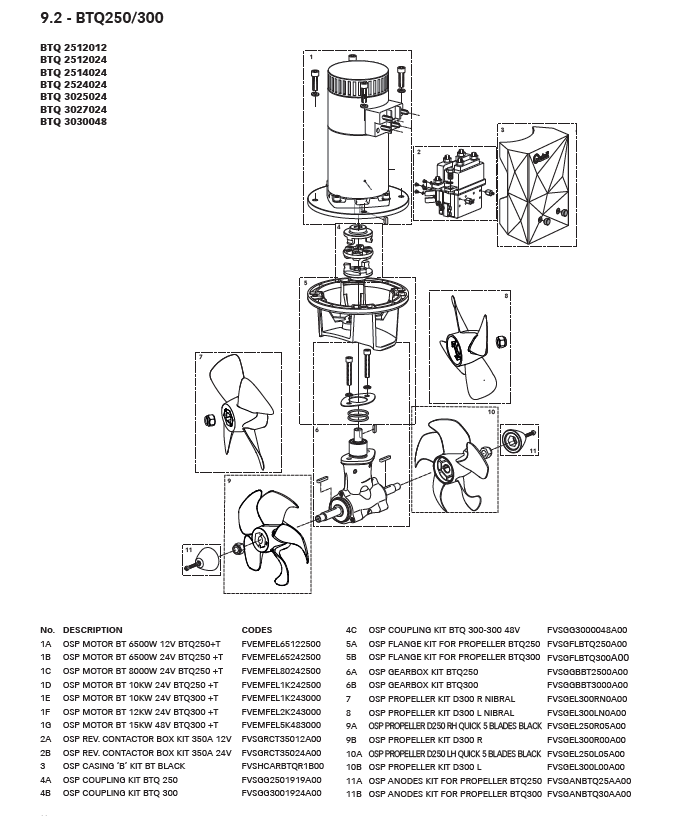

Components and spare parts

Manuals

Drill schemes

SKU: BTQ2512024 STERN KOMPLET

ModelBTQ 250-120 SET
Power120 Kgf - 6500W
Voltage (V)24V
Weight (kg)45.7
Length (mm)1000.0
Height (mm)1000.0
Width (mm)1000.0
BrandQuick

Images

Specifications

Dimensions

Components and spare parts

Manuals

Drill schemes

SKU: BTQ2514024 STERN KOMPLET

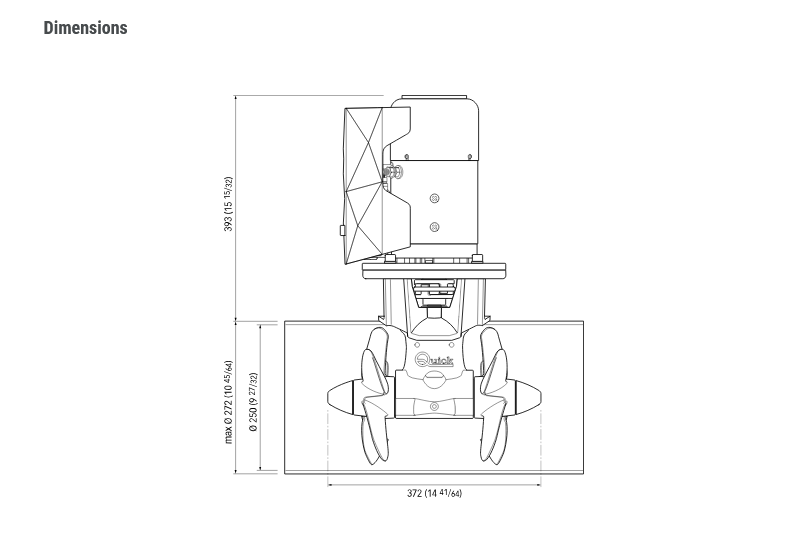

ModelBTQ 250-140 SET
Power140 Kgf - 8000W
Voltage (V)24V
Weight (kg)45.7
Length (mm)1000.0
Height (mm)1000.0
Width (mm)1000.0
BrandQuick

Images

Specifications

Dimensions

Components and spare parts

Manuals

Drill schemes

SKU: BTQ2524024 STERN KOMPLET

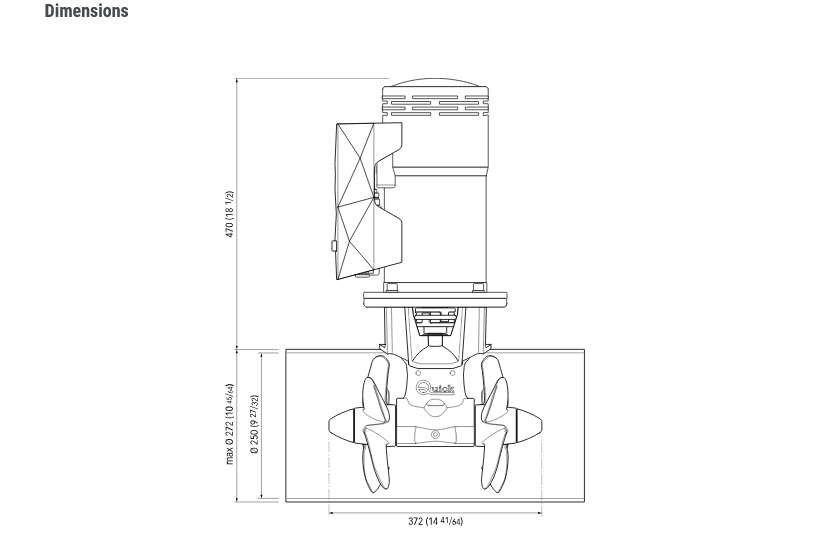

ModelBTQ 250-240 SET
Power240 Kgf - 10000W
Voltage (V)24V
Weight (kg)60.6
Length (mm)1000.0
Height (mm)1000.0
Width (mm)1000.0
BrandQuick

Images

Specifications

Dimensions

Components and spare parts

Manuals

Drill schemes
