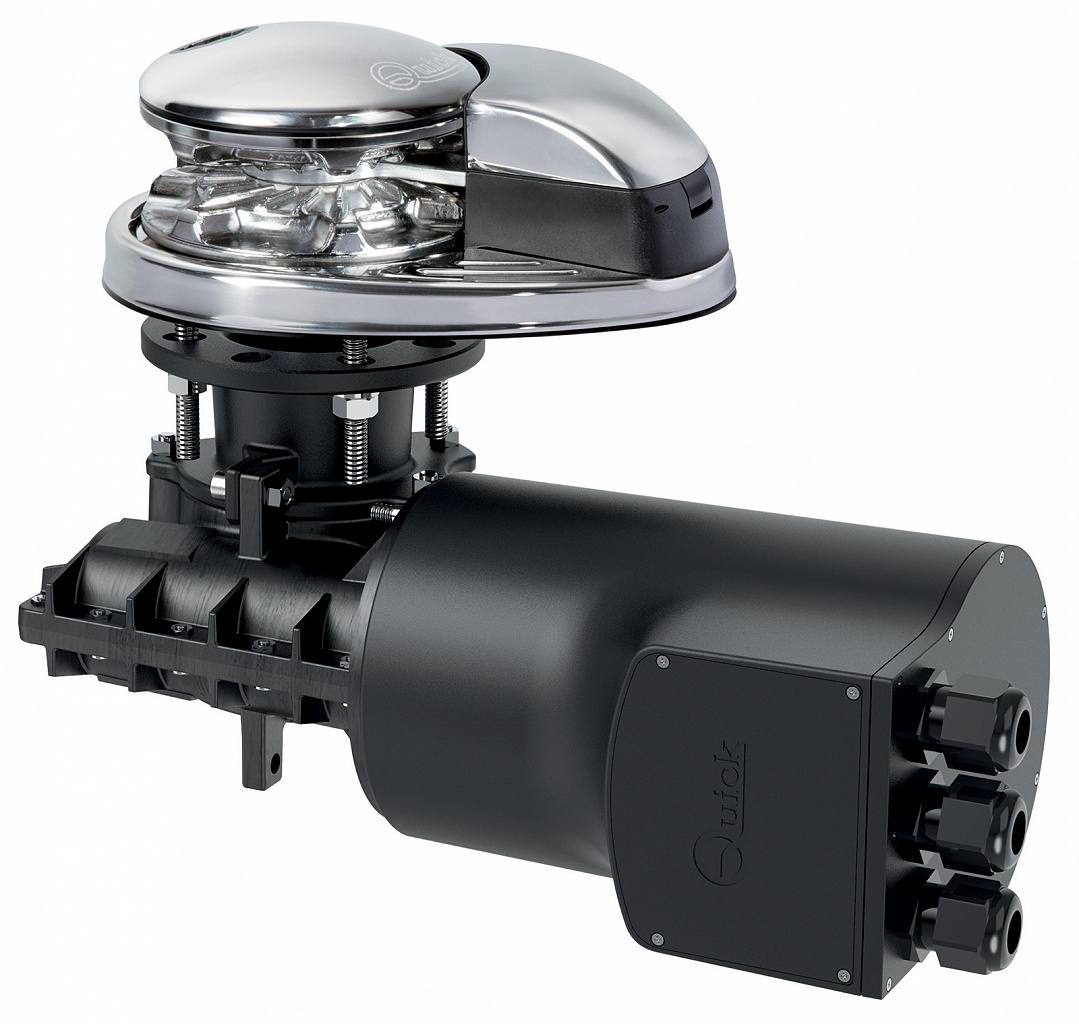

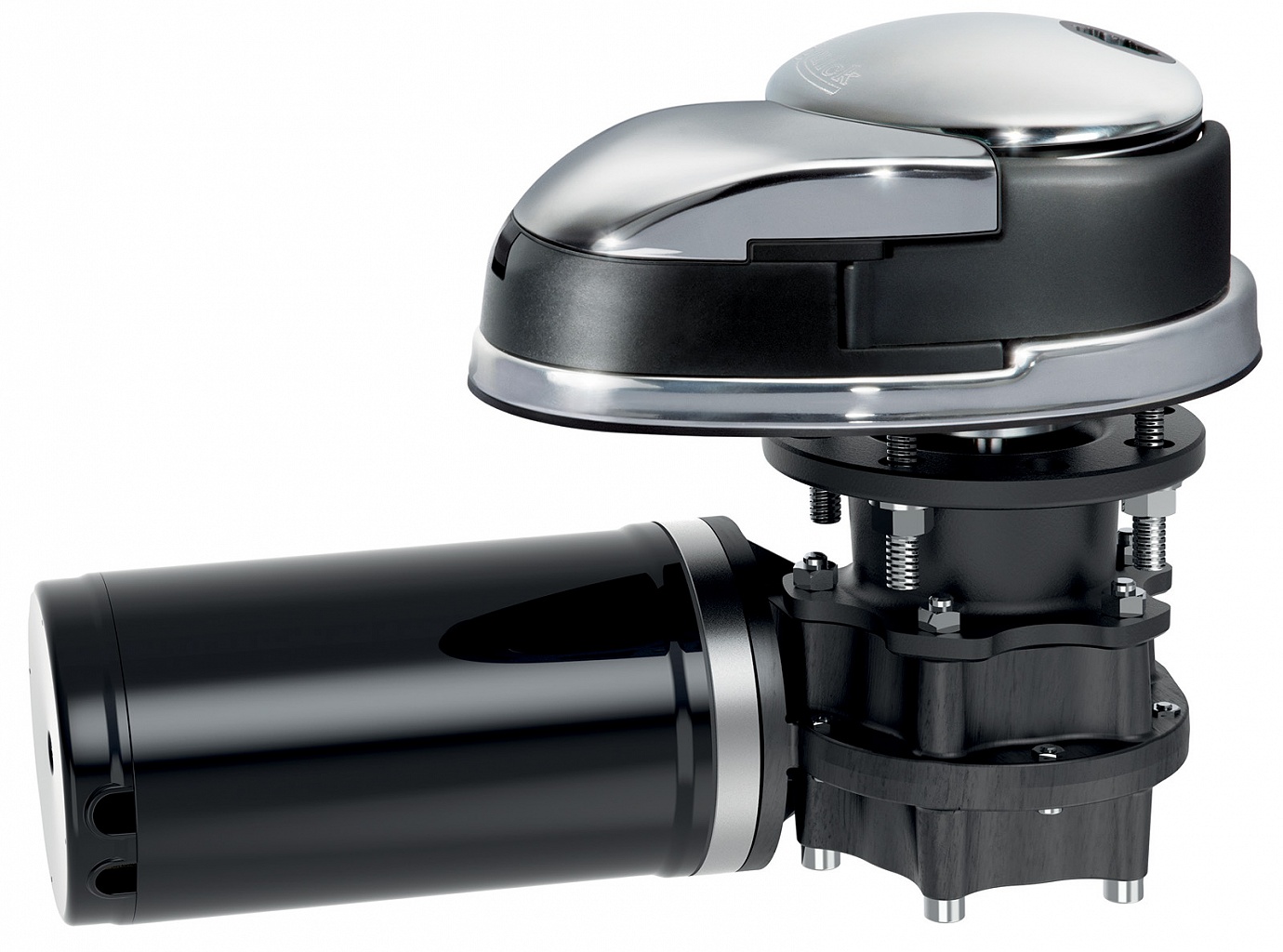

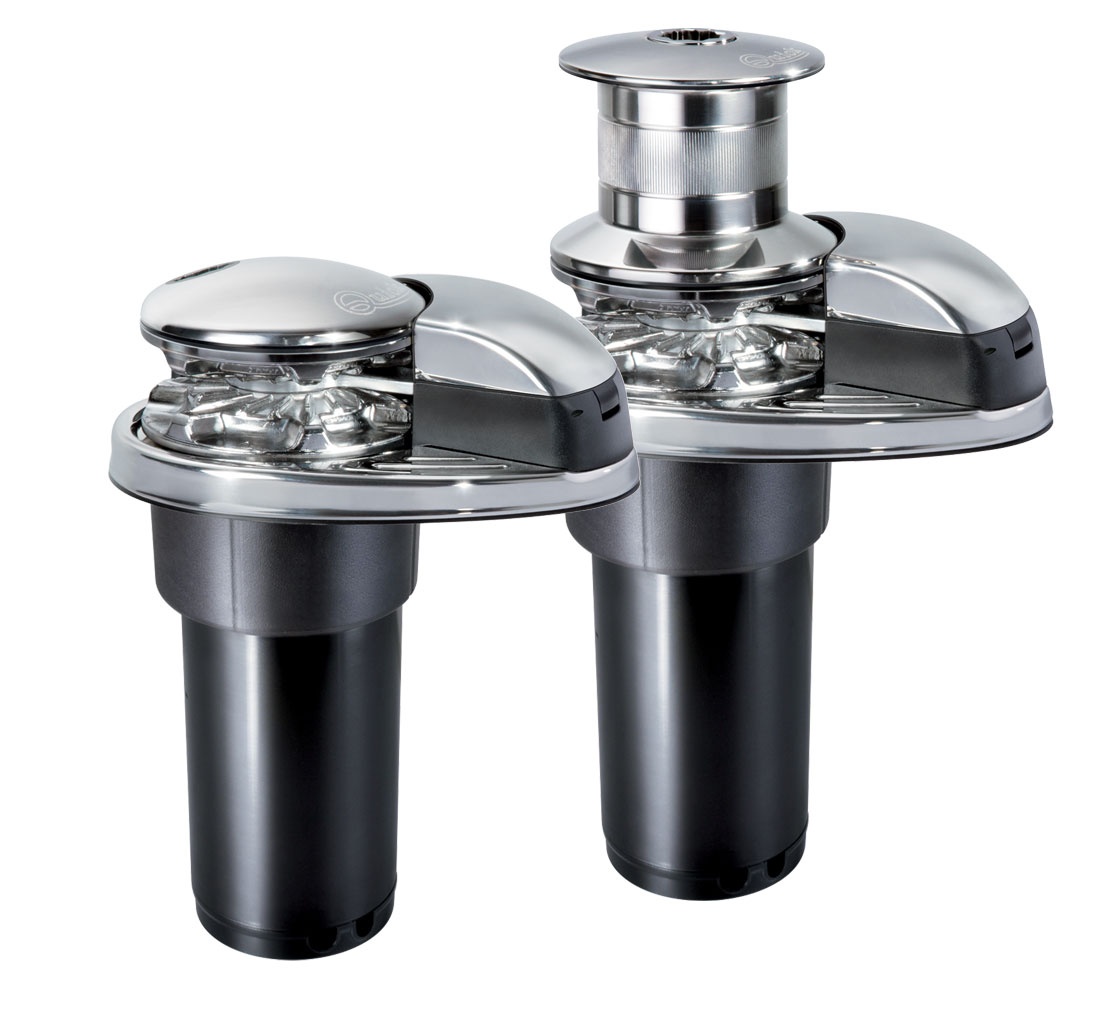

Anchor Windlass QUICK Prince – DP2 P
Recommended price: 1.289,38 € Shop price: 902,00 €
Description

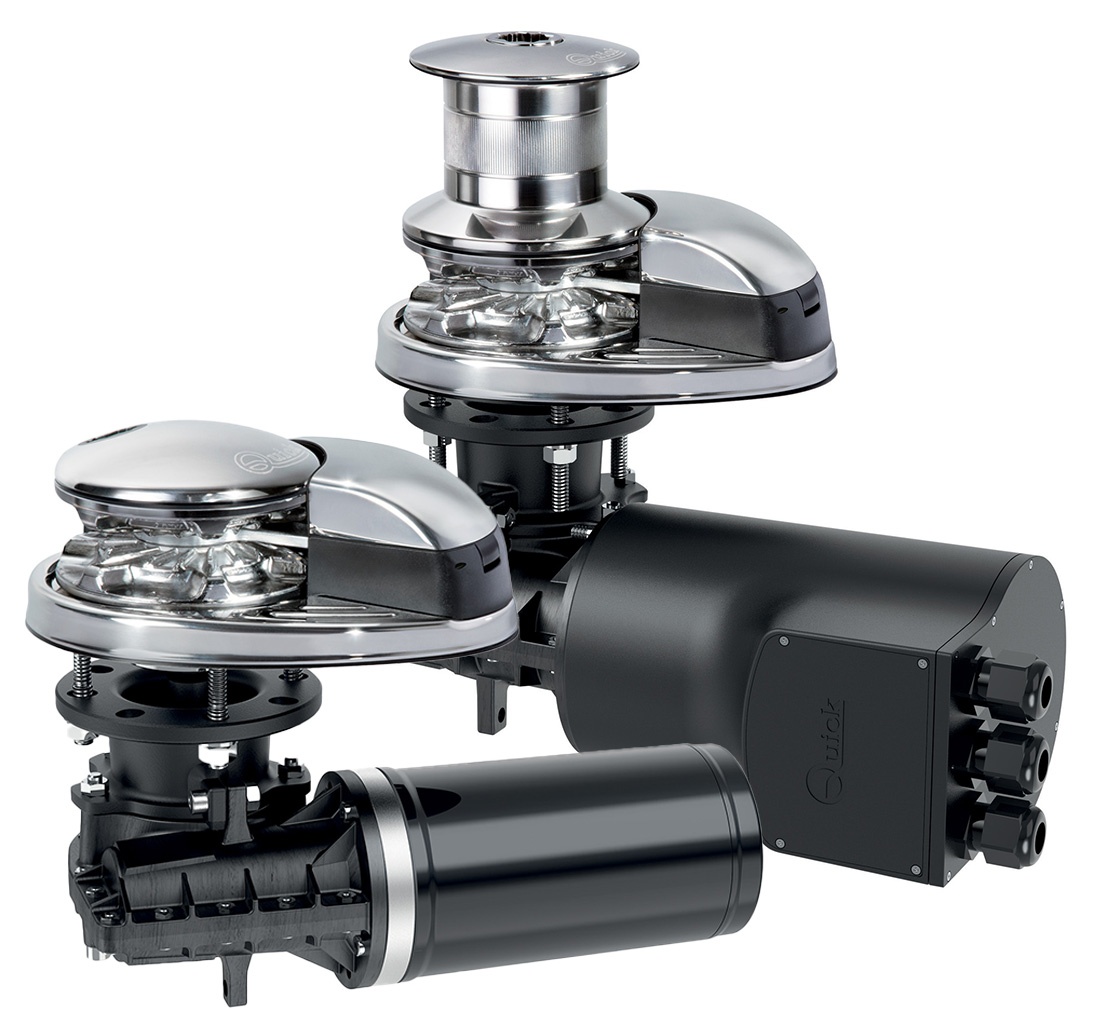

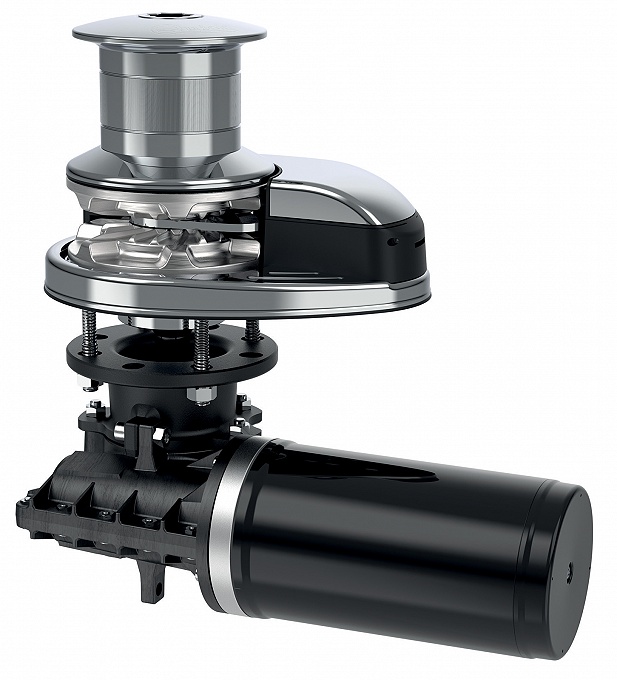

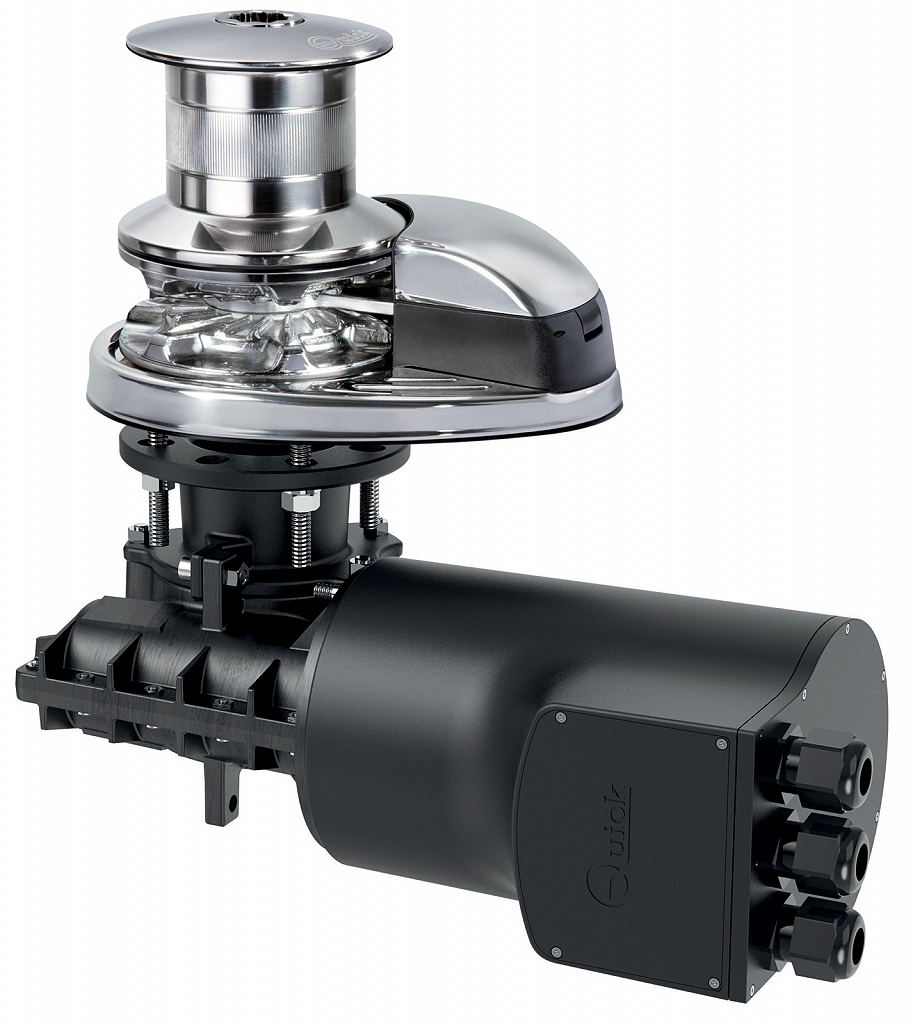

Vertical Anchor Windlass Quick Prince DP2. Intended for boats from 5 to 13 meters. DP2 comes in different variations, 500W, 700W and 1000W models are available, with drum (rope attachment) or without, 6 or 8mm sprocket and 12V or 24V voltage. It comes complete with a switch and a handle.
Technical specifications of variants
SKU: DP2512
| Rope attachment (Drum) | NE |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 9 |
| Length (mm) | 281.2 |
| Height (mm) | 200.5 |
| Width (mm) | 163 |
| Brand | Quick |
Images

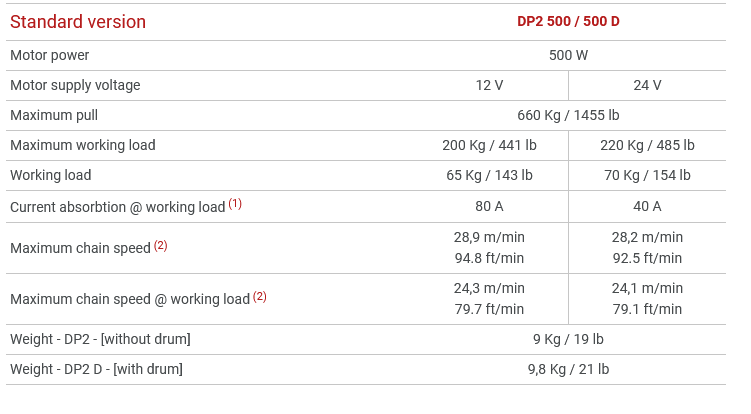

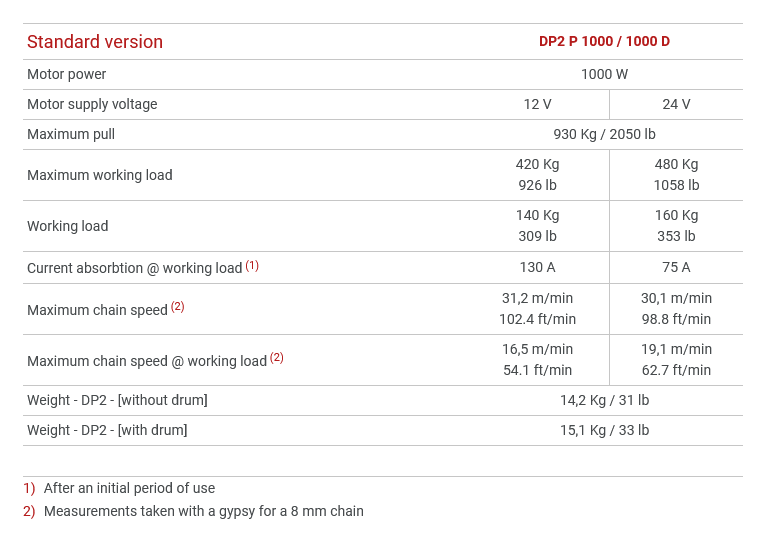

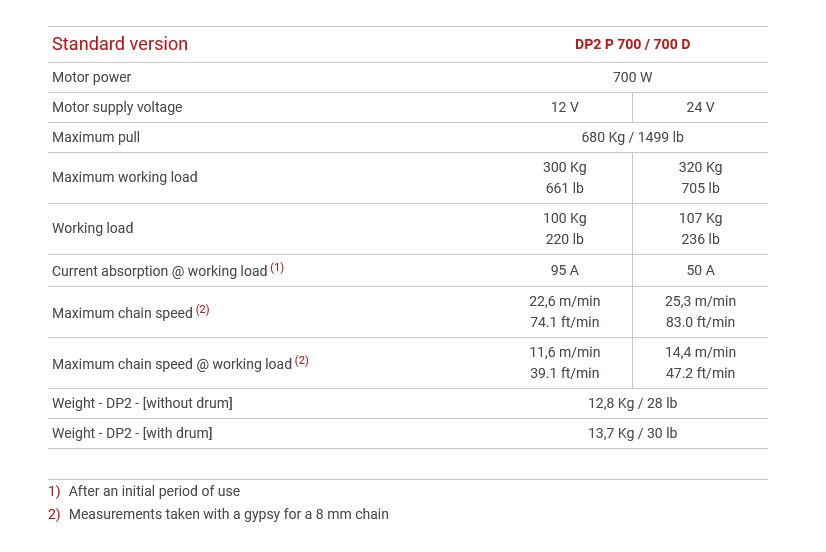

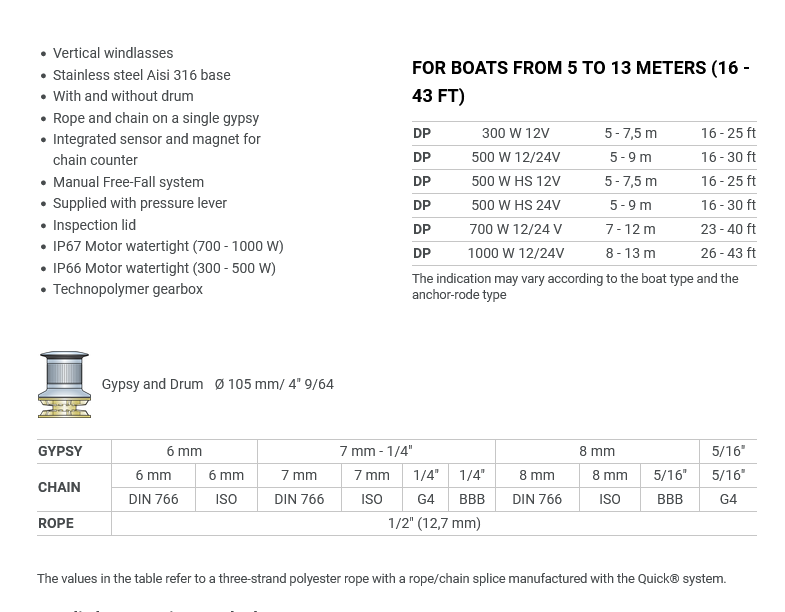

Specifications

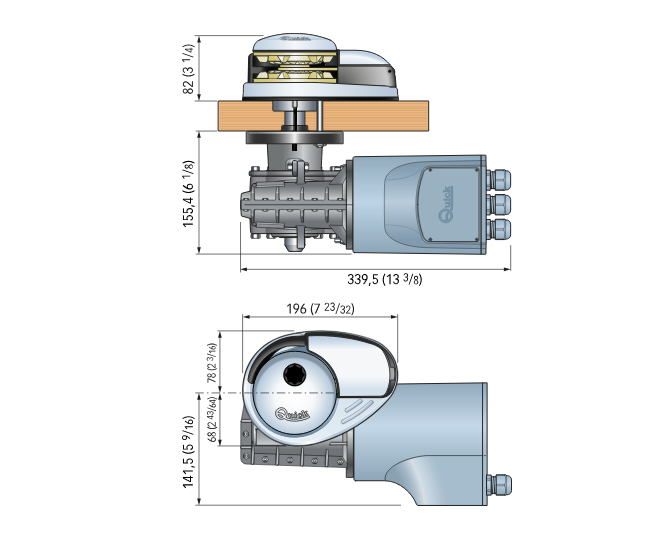

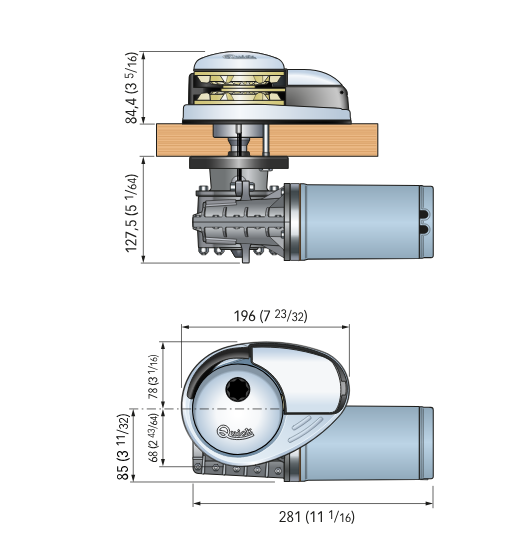

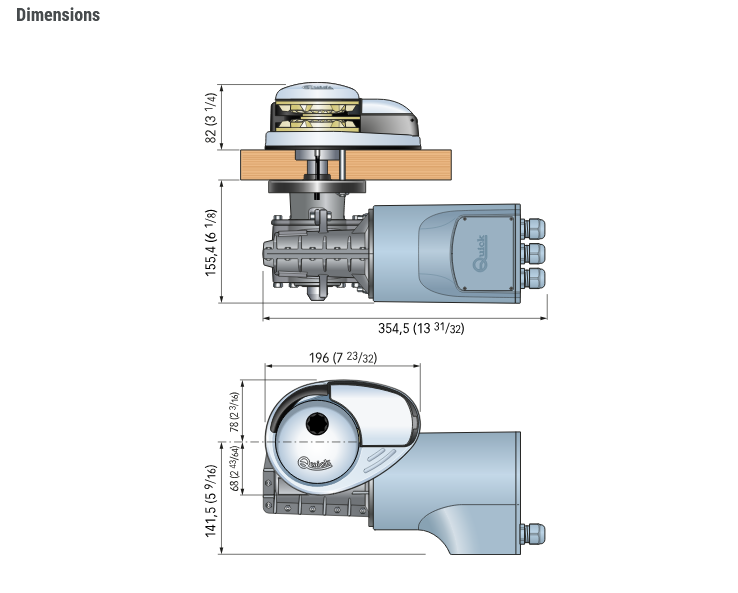

Dimensions

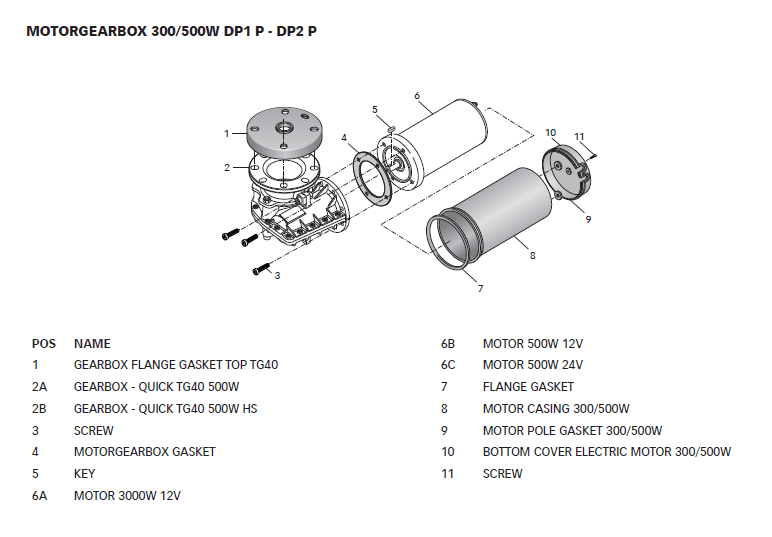

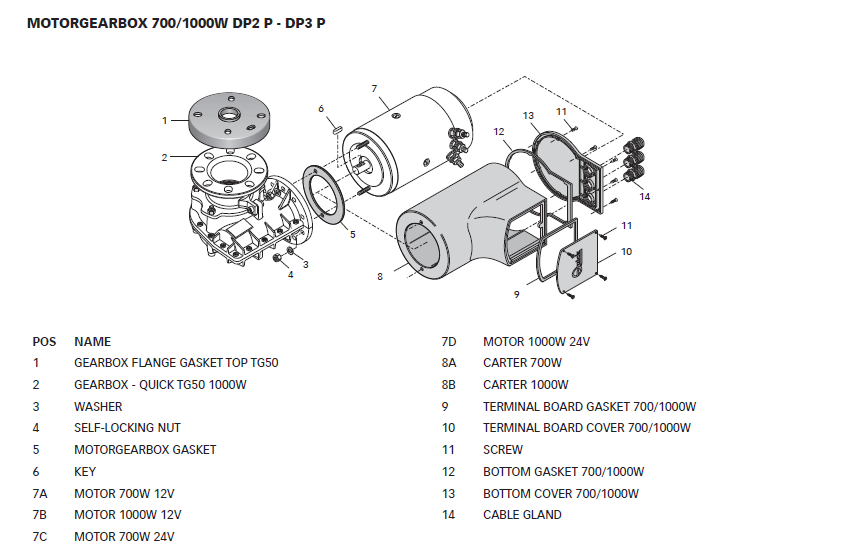

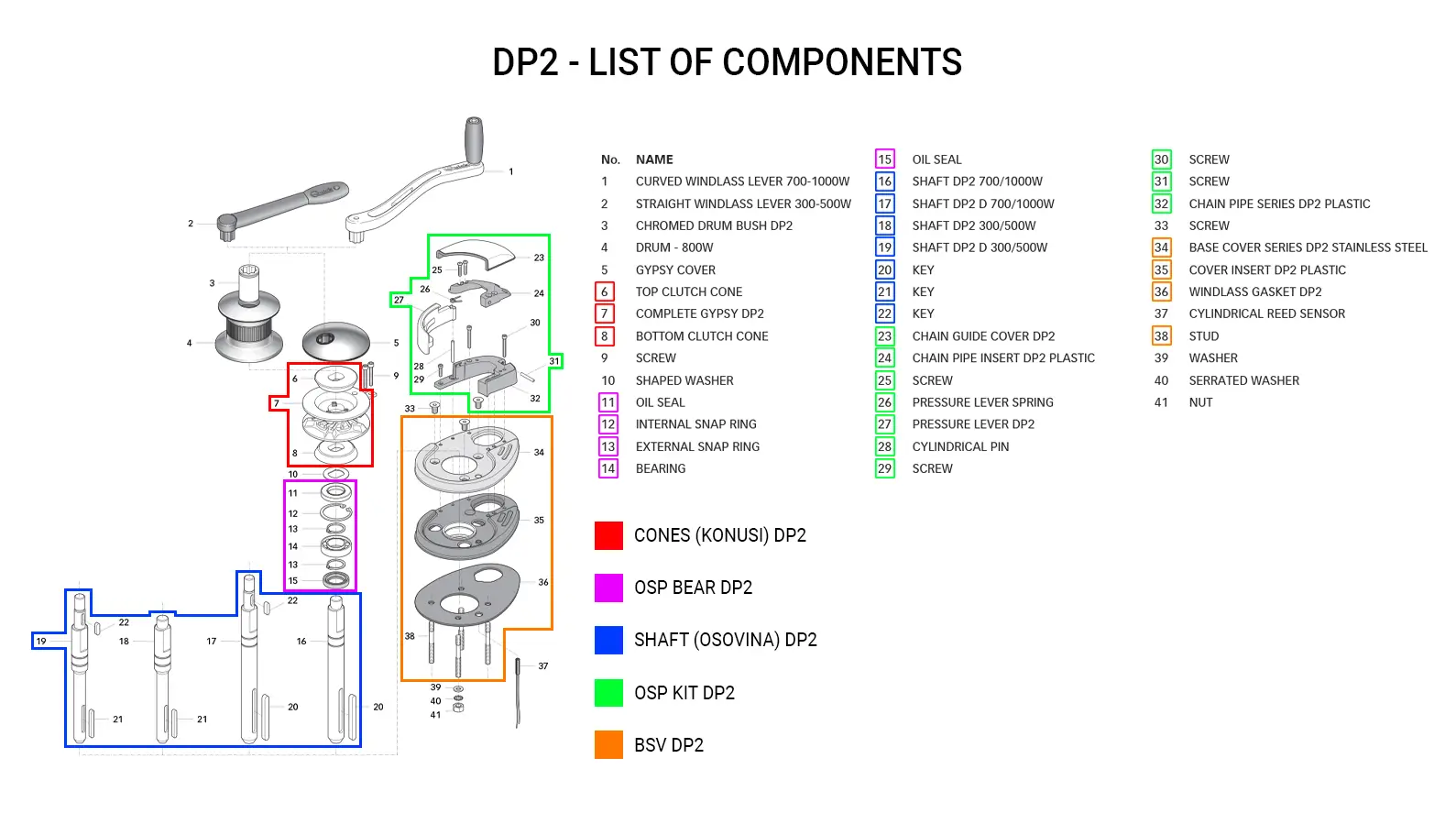

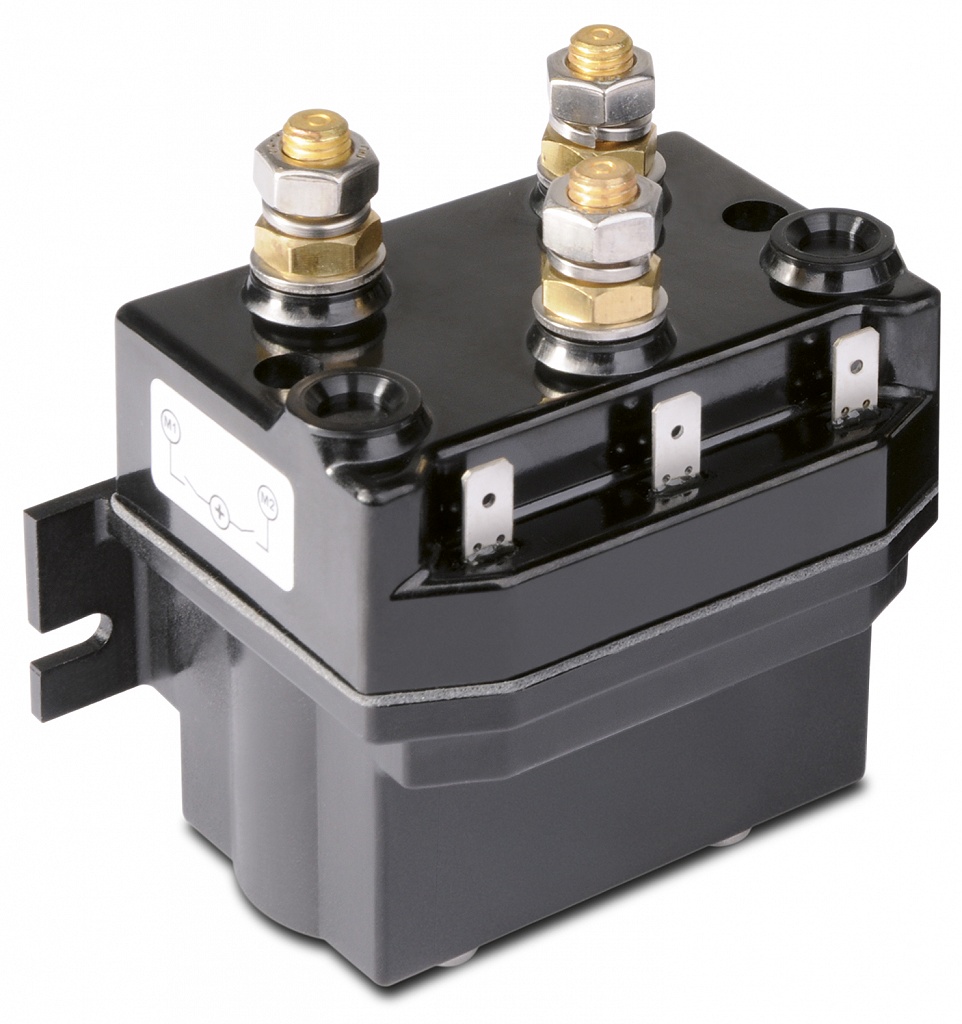

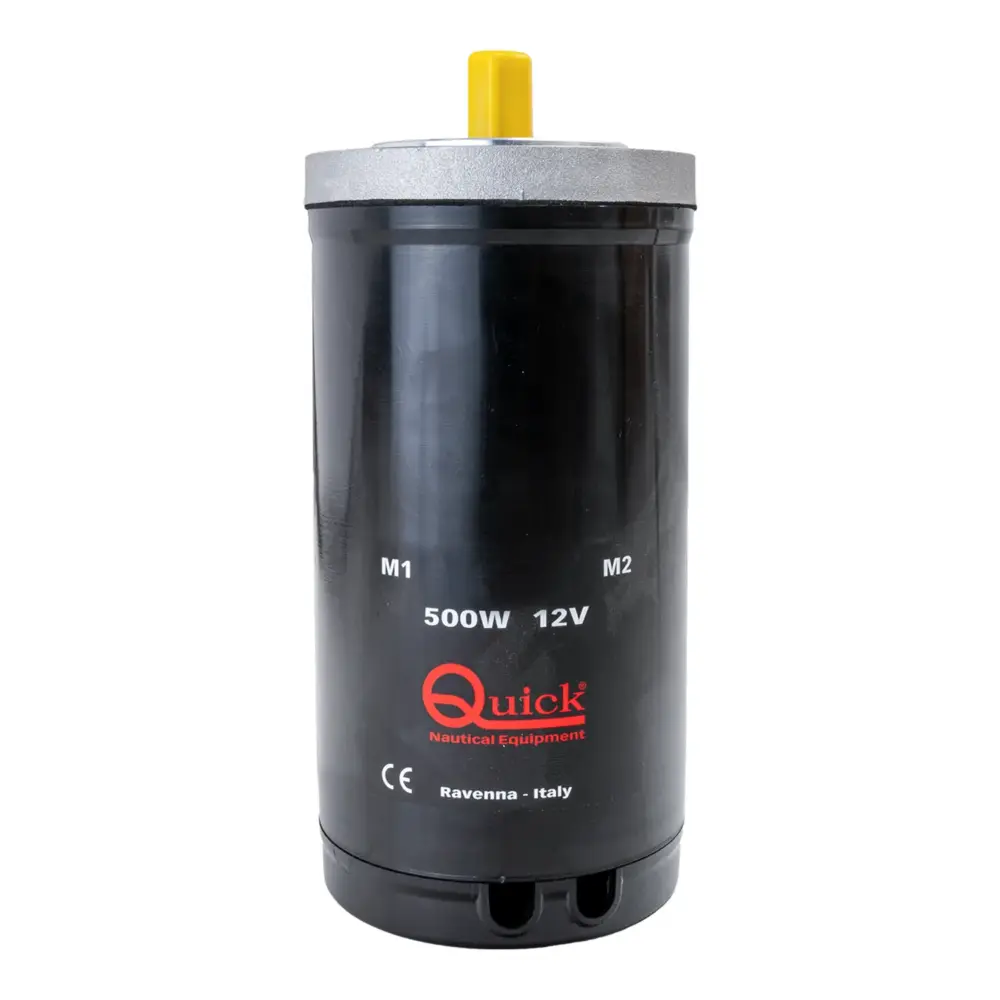

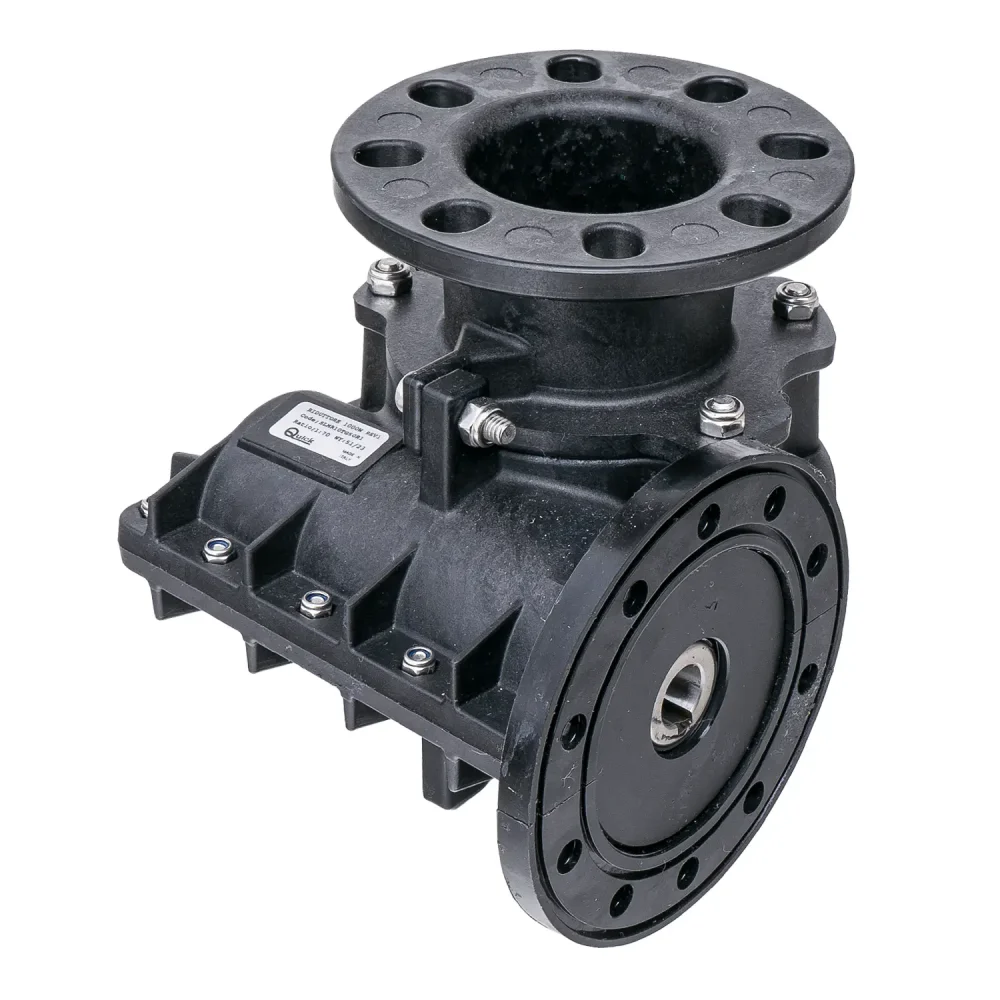

Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2512
| Rope attachment (Drum) | NE |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 9 |
| Length (mm) | 281.2 |
| Height (mm) | 200.5 |
| Width (mm) | 163 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2512D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 9.8 |
| Length (mm) | 281.2 |
| Height (mm) | 259.5 |
| Width (mm) | 163 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2512D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 9.8 |
| Length (mm) | 281.2 |
| Height (mm) | 259.5 |
| Width (mm) | 163 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2712
| Rope attachment (Drum) | NE |
|---|---|
| Power | 700W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 12.8 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2712
| Rope attachment (Drum) | NE |
|---|---|
| Power | 700W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 12.8 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2712D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 700W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 13.7 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP2712D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 700W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 13.7 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21012
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 14.2 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21012
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 14.2 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21012D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 15.1 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21012D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 15.1 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21024
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 6mm |
| Weight (kg) | 14.2 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21024
| Rope attachment (Drum) | NE |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 14.2 |
| Length (mm) | 339.5 |
| Height (mm) | 237.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21024D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 6mm |
| Weight (kg) | 15.1 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Drill schemes
SKU: DP21024D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 24V |
| Sprocket | 8mm |
| Weight (kg) | 15.1 |
| Length (mm) | 339.5 |
| Height (mm) | 295.4 |
| Width (mm) | 219.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ENG
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-DE
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-IT
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-FR
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-ESP
- Manual-DPSeries-DP1-DP2-DP3-vertical-windlass-sidreno-vitlo-Quick-Neptune-Nautica-PT
Reviews
There are no reviews yet.
