Quick windlasses and capstans contactor unit (spare part)
Recommended price: 127,50 € Shop price: 102,00 €

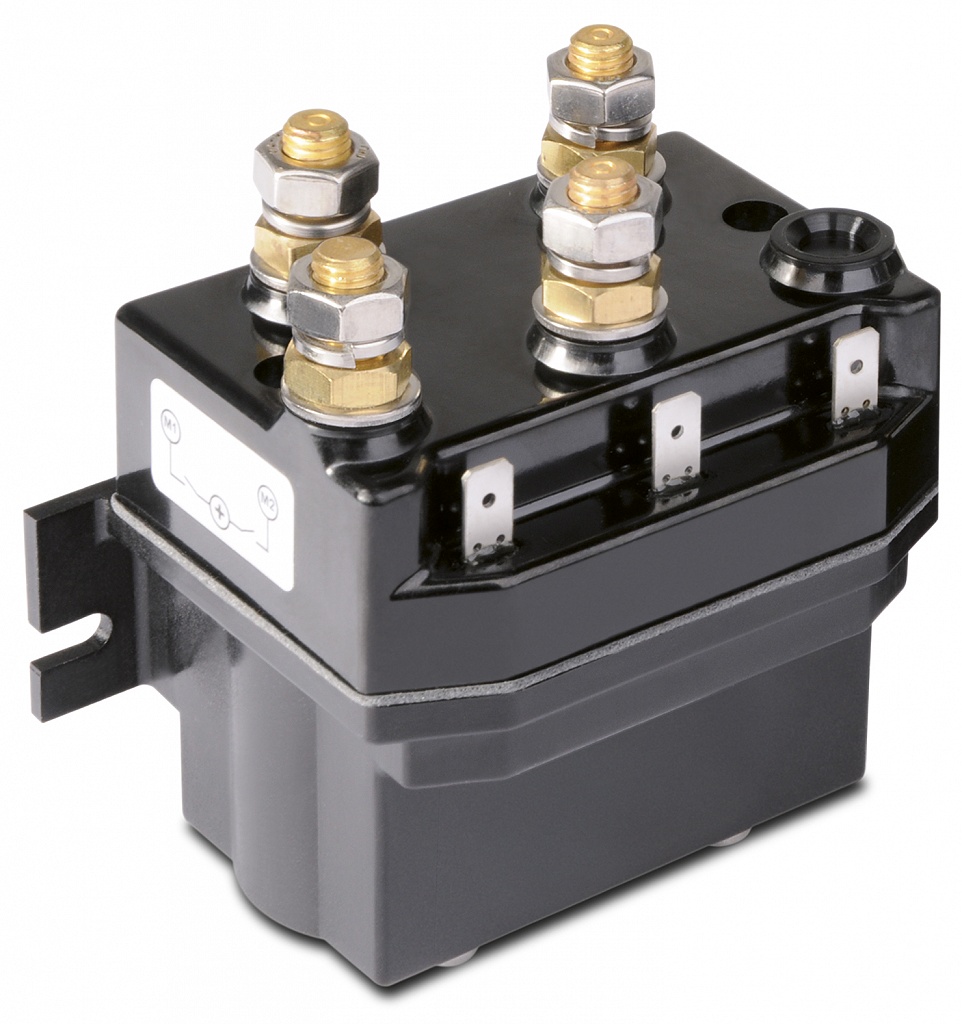

Spare contactor unit for Quick windlasses and capstans (150A).
It comes in different versions, with three terminals (T6315) or four terminals (T6415) and 12V or 24V.
Thanks to external terminals, they are very easy to mount.
Protection rating: IP66 (excluding terminals).

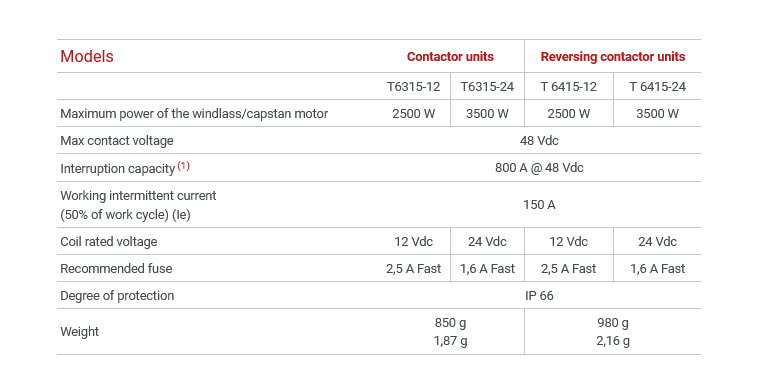

Technical specifications of variants
SKU: T 6315-12
| Model | T6315 |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 0.85 |
| Length (mm) | 100.3 |
| Height (mm) | 101.6 |
| Width (mm) | 66.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Manuals
SKU: T 6315-24
| Model | T6316 |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 0.85 |
| Length (mm) | 100.3 |
| Height (mm) | 101.6 |
| Width (mm) | 66.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Manuals
SKU: T 6415-12
| Model | T6415 |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 0.92 |
| Length (mm) | 100.3 |
| Height (mm) | 101.6 |
| Width (mm) | 66.5 |
| Brand | Quick |
Images
Specifications
Dimensions
Manuals
SKU: T 6415-24
| Model | T6415 |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 0.92 |
| Length (mm) | 100.3 |
| Height (mm) | 101.6 |
| Width (mm) | 66.5 |
| Brand | Quick |
Images
Specifications
Dimensions
