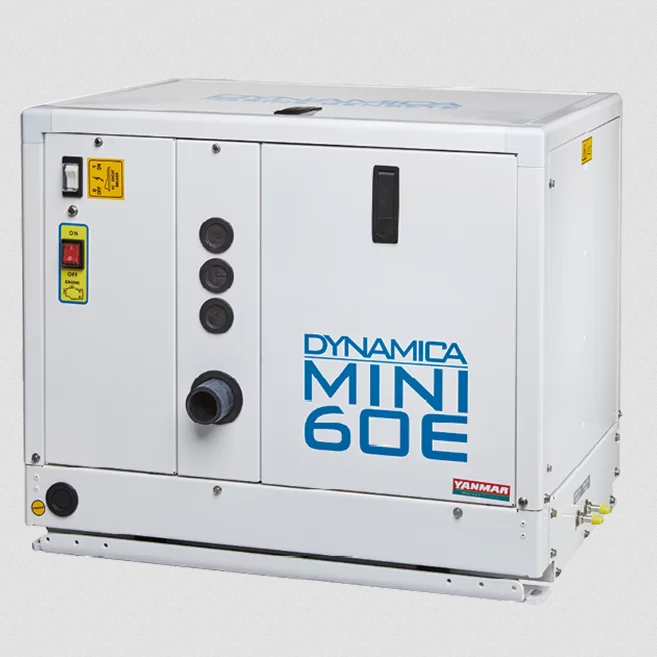

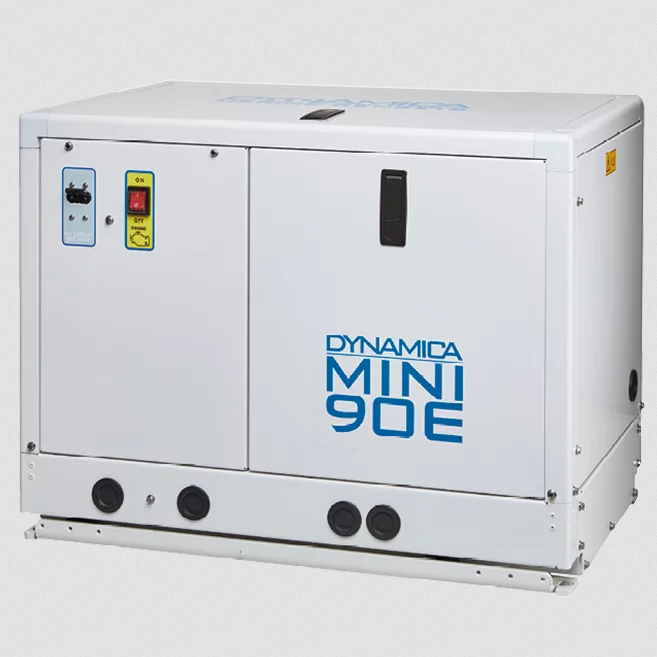

DYNAMICA E series – Marine Generators

Description

Features:
– Easy access to the fuel lines, lubrication system, sea/water pump, and air filter
– Safety shutdown in the event of low oil pressure, high engine temperature, or high exhaust gas temperature
– Dual vibration reduction system
– Oil drain pump supplied

Alternator
– Synchronous, 2-pole, self-regulating, self-excited, brushless
– Rotor and stator coated with epoxy resin for protection against external agents
– Dynamically balanced rotor
– Insulation class: H
– Safety shutdown for high temperature

Engine and alternator cooling
Engine cooling is based on a closed internal coolant circulation system. The system is based on a cupronickel seawater/coolant heat exchanger, where heat transfer takes place between the two fluids. Two separate pumps ensure the circulation of coolant and seawater. Air cooling inside the generator is achieved by means of a seawater/air heat exchanger. This ensures efficient alternator cooling and maintains the optimum temperature for the best performance and reliability of the generator, regardless of its intended use and ambient temperature.

Sound insulation
Completely redesigned and reconstructed, the sound shield is made of painted aluminum panels. Extremely durable and lightweight, it allows the easiest possible access to the internal parts of the generator for servicing. Both the main frame and the panels are made of 5754 aluminum alloy.

Control unit
– IP54 protection
– Soft-touch ON/OFF/START/STOP/MENU buttons
– Digital hour meter, main voltage, generator battery voltage, external battery voltage, frequency, service interval, list of events from the last 10 alarms, and time
– 13 alarm icons
– 485 Mod-Bus connector for monitoring the generator via the boat’s main control monitor
– GSM control option (ON/OFF – alarms)
