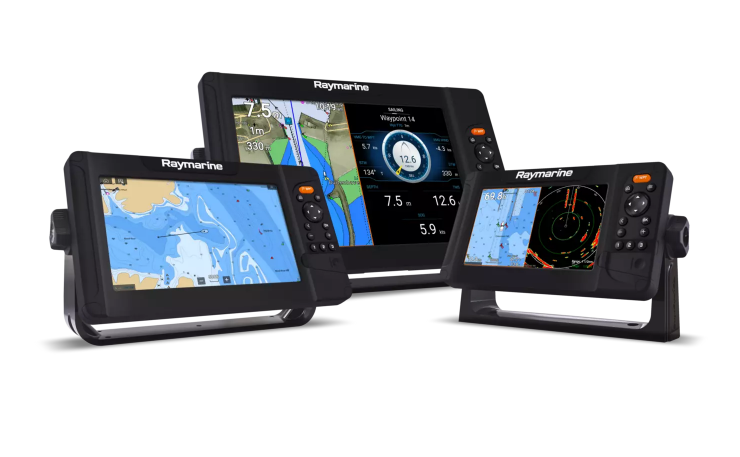

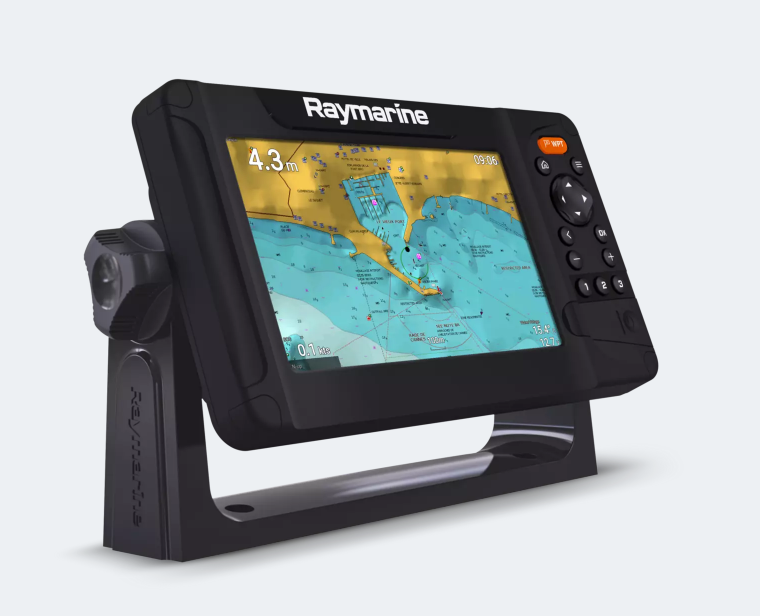

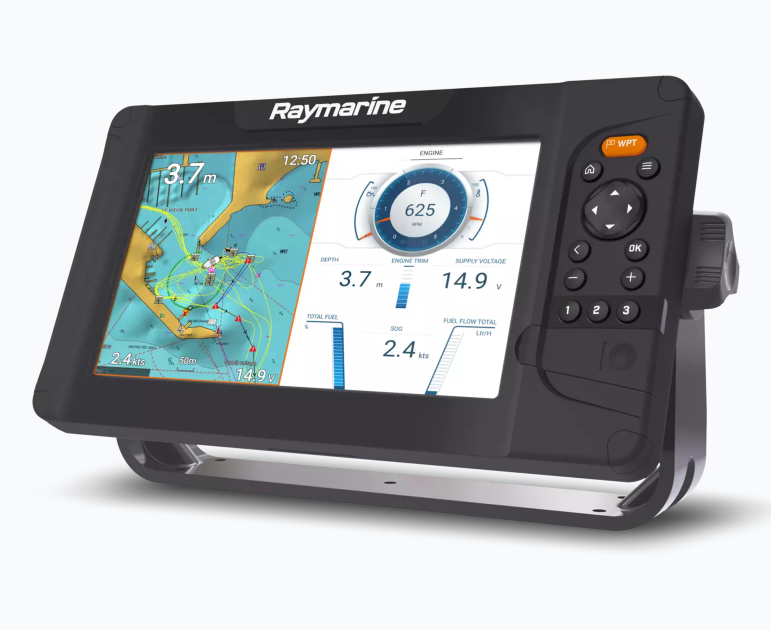

Raymarine ELEMENT S

Description

Element S Performance
– GPS chartplotter with built-in High CHIRP sonar for depth monitoring and bottom display
– Fast and accurate 10 Hz GPS/GNSS receiver provides reliable positioning and safe navigation
– Powerful quad-core processor ensures fast chart redraw and smooth device operation
– Simple LightHouse Sport operating system enables easy use and quick access to key functions

Maximum Visibility
– Super-bright all-weather display provides excellent visibility, even in direct sunlight
– Available in 7-inch and 12-inch sizes, depending on the vessel’s needs and available installation space
– Clear display of charts, navigation data and sonar in vivid colors

Easy Operation
– Keypad control enables safe and precise operation, even in more demanding conditions at sea
– Oversized waypoint button allows quick marking of favorite locations
– Three programmable quick-access buttons provide one-touch access to favorite pages
– Live menus allow chart display settings to be adjusted while viewing the changes directly on screen

Reliable Navigation and Sonar
– Built-in single-channel High CHIRP sonar helps locate fish and reliably monitor the bottom
– Element S models are designed for recreational boating, cruising and simple depth readings
– Support for Raymarine LightHouse charts, Navionics and C-MAP cartography
– Compatible with CPT-S transom transducer and through-hull transducers

Connectivity
– NMEA 2000 connectivity enables integration with AIS, autopilot, sailing instruments, engines, tank sensors and VHF devices
– Wi-Fi connectivity allows connection to Raymarine Quantum radar
– Element S allows system expansion and a better overview of important navigation data on a single display

Package includes:
– Raymarine Element S display
– Device mounting bracket
– Protective cover
– Surface mounting gasket
– Trunnion screws 2x
– Stainless steel surface mounting fasteners 4x
– Power cable
– Documentation
