Electromagnetic valve
From 124,00 €

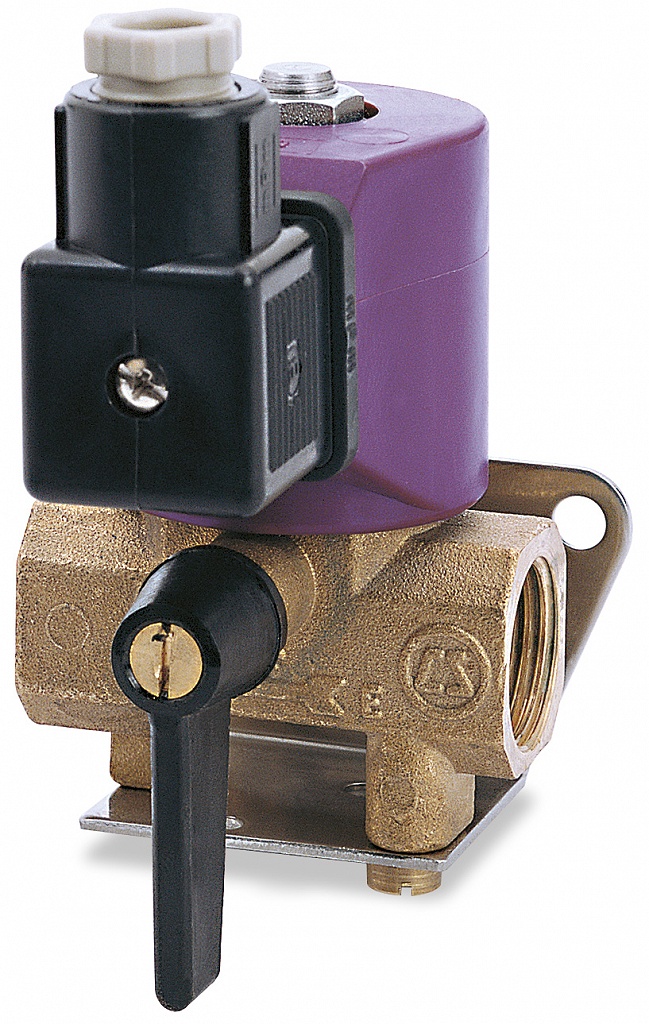

Electromagnetic (Solenoid) valve enables remote opening with electric control for water and fuel supply.
This solenoid valve is made in brass and stainless steel, with a by-pass, continuous service and airtight electric connection.
Suitable for: Petrol and Diesel
Not suitable for: LPG gas

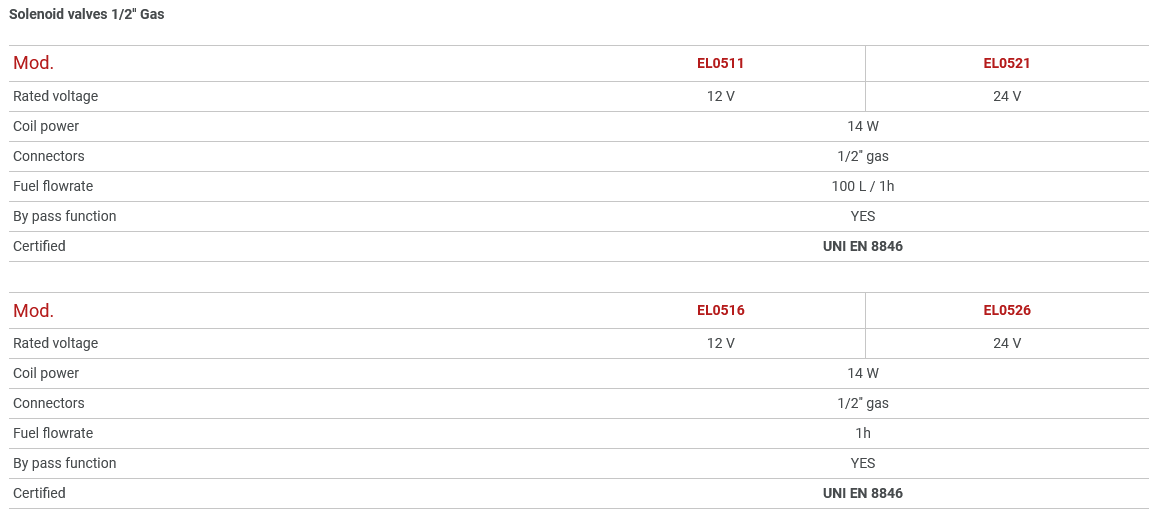

Technical specifications of variants
SKU: EL0511
| Model | EL0511 - 1/2” gas - 100L/H |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 0.5 |
| Length (mm) | 77 |
| Height (mm) | 104 |
| Width (mm) | 58 |
| Brand | Quick |
Images
Specifications

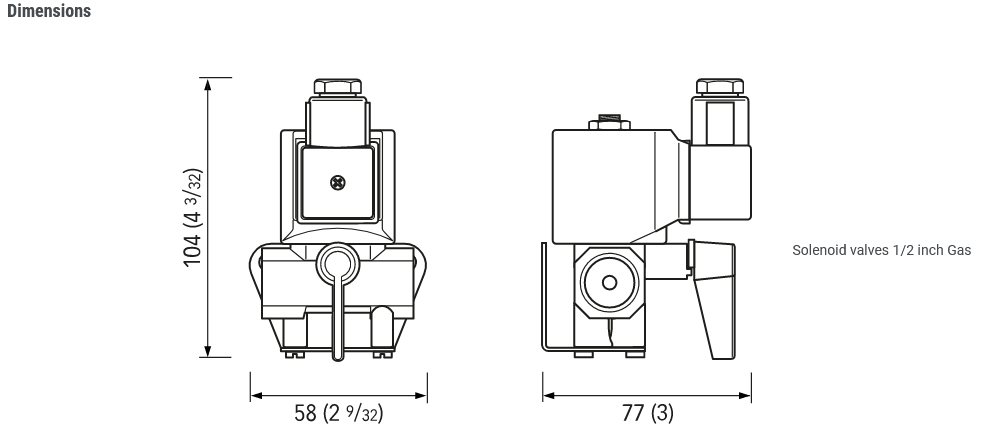

Dimensions
SKU: EL0516
| Model | EL0516 - 1/2” gas - 600L/H |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 0.5 |
| Length (mm) | 77 |
| Height (mm) | 104 |
| Width (mm) | 58 |
| Brand | Quick |
Images
Specifications
Dimensions
SKU: EL0521
| Model | EL0521 - 1/2” gas - 100L/H |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 0.5 |
| Length (mm) | 77 |
| Height (mm) | 104 |
| Width (mm) | 58 |
| Brand | Quick |
Images
Specifications
Dimensions
SKU: EL0526
| Model | EL0526 - 1/2” gas - 600L/H |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 0.5 |
| Length (mm) | 77 |
| Height (mm) | 104 |
| Width (mm) | 58 |
| Brand | Quick |
Images
Specifications
Dimensions

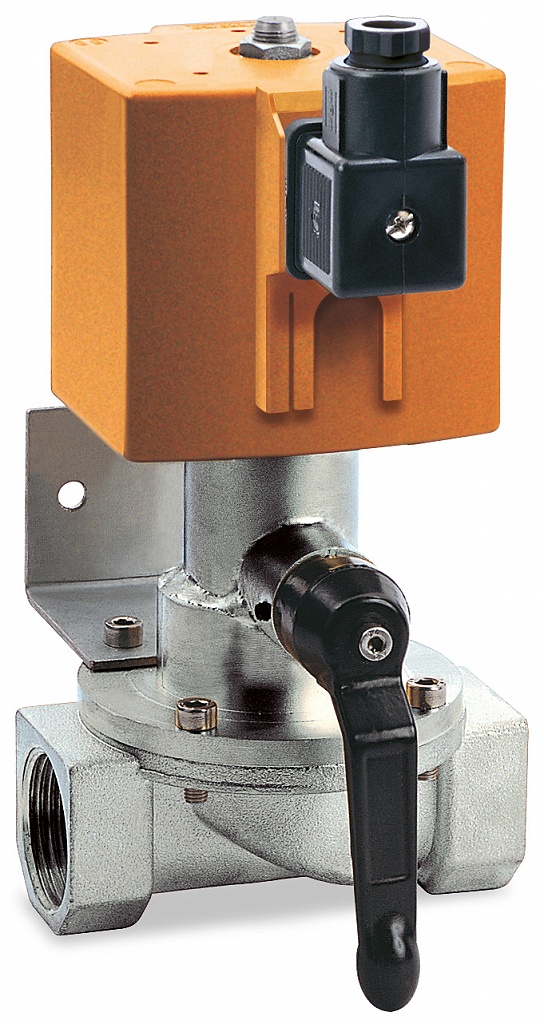

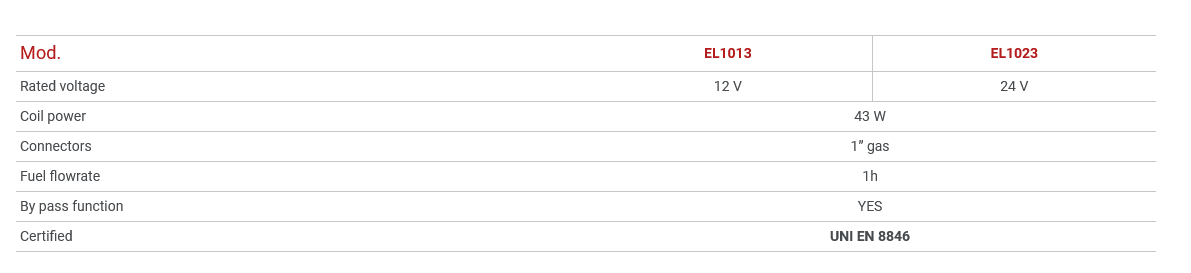

SKU: EL1013
| Model | EL1013 - 1” gas - 3350L/H |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 0.5 |
| Length (mm) | 100 |
| Height (mm) | 190 |
| Width (mm) | 100 |
| Brand | Quick |
Images
Specifications
Dimensions
SKU: EL1023
| Model | EL1023 - 1” gas - 3350L/H |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 0.5 |
| Length (mm) | 100 |
| Height (mm) | 190 |
| Width (mm) | 100 |
| Brand | Quick |
Images
Specifications
Dimensions
