QUICK VRS voltage converter – 24/12V

Recommended price: 116,88 € Shop price: 81,00 €

Voltage converter – 24/12V – For powering 12V electronic devices (VHF, radio, TV, etc.) on boats with a 24V electrical system
SKU: 14 Categories: , Tags: , , , ,

Description

The Quick VRS is a switching voltage reducer used for the safe separation of 12V and 24V electrical systems.

The main advantages of this unit are:
– isolation between input and output
– low residual output ripple (less than 50 mV RMS, and less than 15 mV for the HE model)

Additional safety features include:
– protection against short circuit, high output voltage, and reverse polarity

Technical specifications of variants

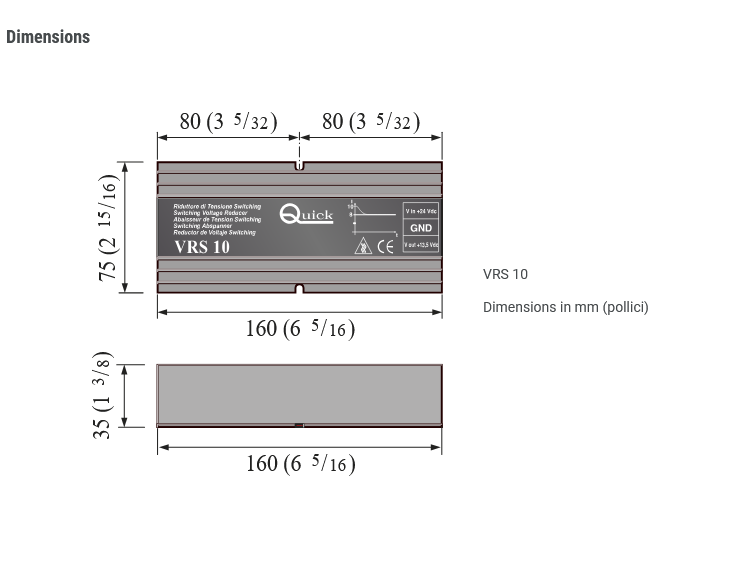

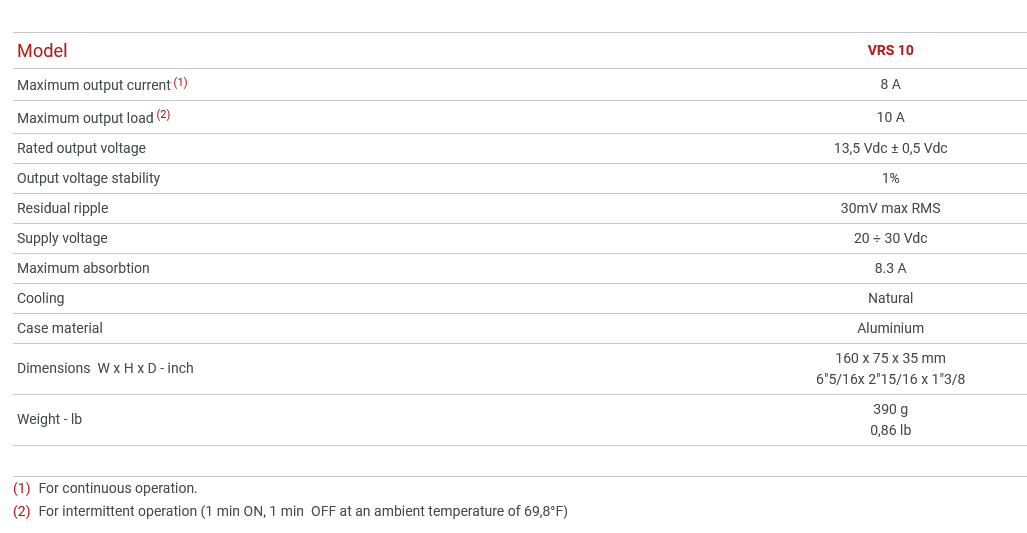

SKU: VRS10

ModelVRS 10 - 10A
Weight (kg)0.39
Length (mm)160.0
Height (mm)75.0
Width (mm)35.0
BrandQuick

Images

Specifications

Dimensions

Manuals

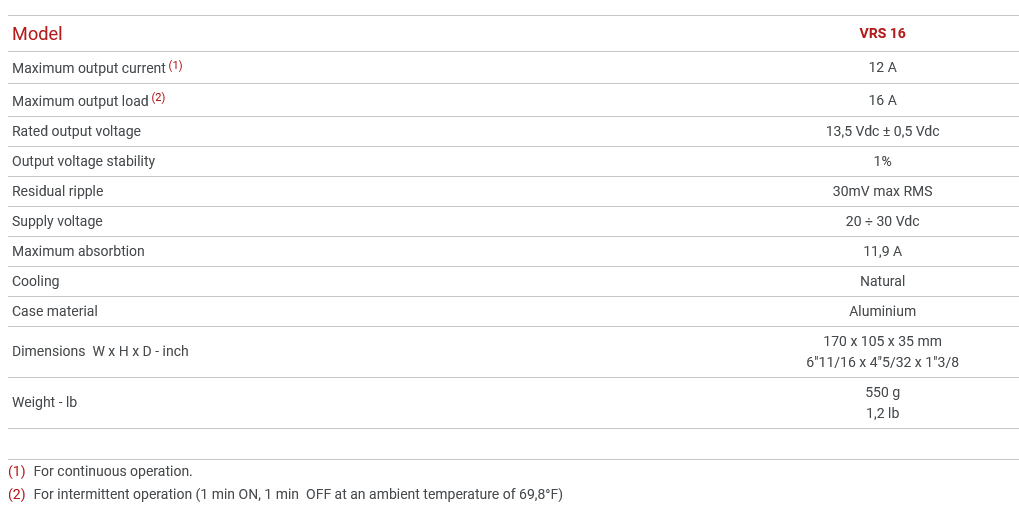

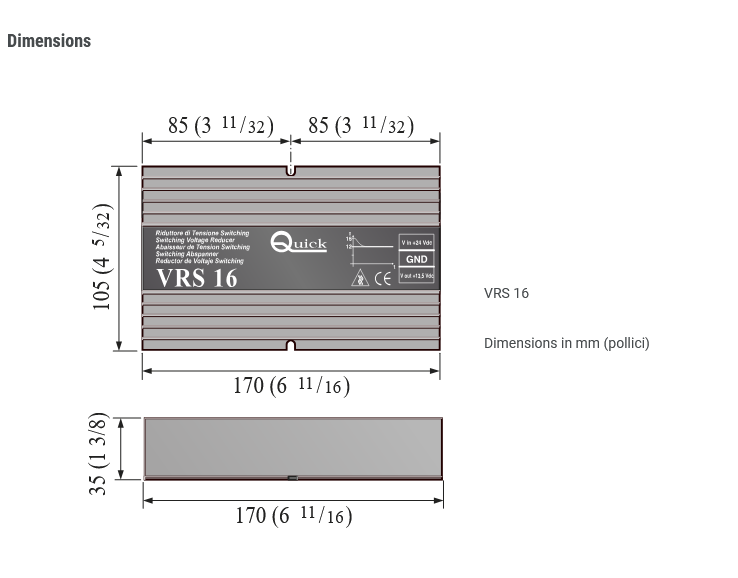

SKU: VRS16

ModelVRS 16 - 16A
Weight (kg)0.55
Length (mm)170.0
Height (mm)105.0
Width (mm)35.0
BrandQuick

Images

Specifications

Dimensions

Manuals

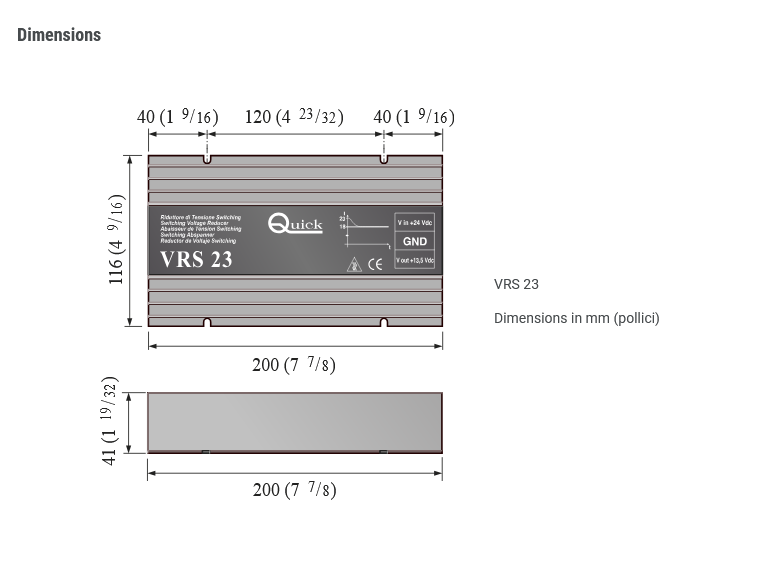

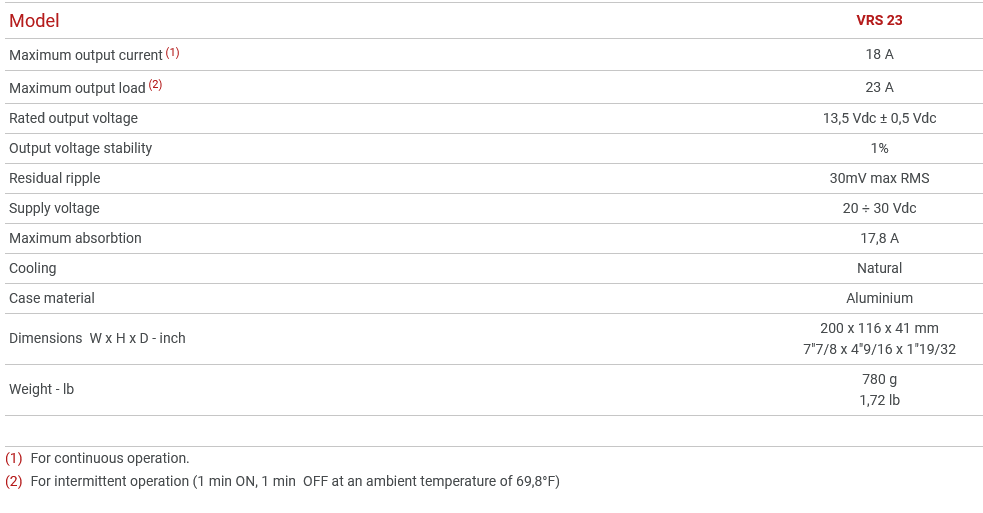

SKU: VRS23

ModelVRS 23 - 23A
Weight (kg)0.78
Length (mm)200.0
Height (mm)116.0
Width (mm)41.0
BrandQuick

Images

Specifications

Dimensions

Manuals

SKU: VRS30HE

ModelVRS 30 HE - 30A
Weight (kg)0.5
Length (mm)120.0
Height (mm)157.0
Width (mm)40.0
BrandQuick

Manuals
