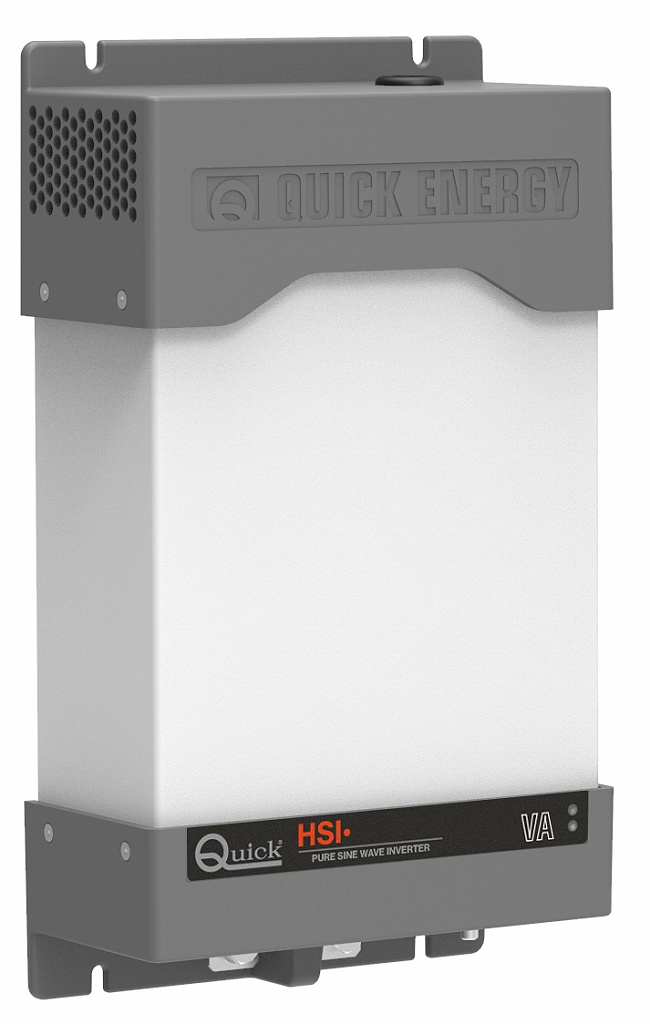

Quick HSI inverter

Recommended price: 726,25  Shop price: 508,00

Quick HSI sine wave inverters are devices that convert direct current (12 V or 24 V) into single-phase alternating current (230 Vac – 50 Hz), enabling the use of any electrical device such as a coffee machine, hair dryer or microwave oven.
Models:
1208HR OEM 230VAC 800VA
1212HR 230VAC 1200VA
1216HR 230VAC 1600VA
2412HR 230VAC 1200VA

Description

Quick’s HSI inverters, designed to provide the highest efficiency, are equipped with advanced communication functions that allow monitoring the energy consumption of connected devices.

Features:
– High efficiency
– Small dimensions and light weight thanks to high-frequency energy conversion
– High output peak power (200% of nominal value for 2 s)
– LP mode (low consumption) to save batteries in case of idling
– CAN bus interface for data transmission
– Variable speed cooling fans
– User-friendly interface
– Protected against reverse polarity (fuse), short circuit, overload, output overvoltage and overheating

Technical specifications of variants

SKU: HSI1208 HR OEM

Model1208HR OEM 230VAC 800VA
DisplayBez displeja
Voltage (V)12V
Weight (kg)2.6
Length (mm)300.0
Height (mm)80.0
Width (mm)170.0
BrandQuick

Images

Specifications

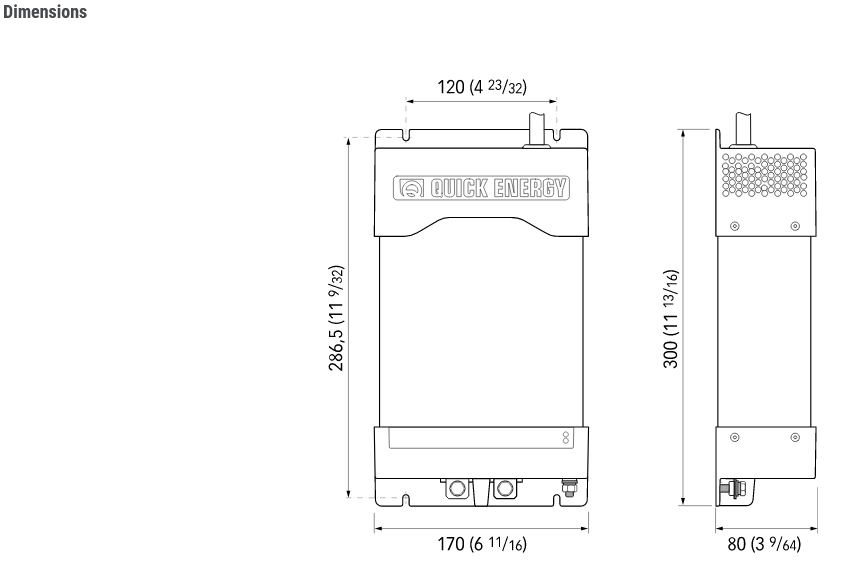

Dimensions

Manuals

SKU: HSI1212 HR

Model1212HR 230VAC 1200VA
DisplaySa displejom
Voltage (V)12V
Weight (kg)3.1
Length (mm)300.0
Height (mm)80.0
Width (mm)170.0
BrandQuick

Images

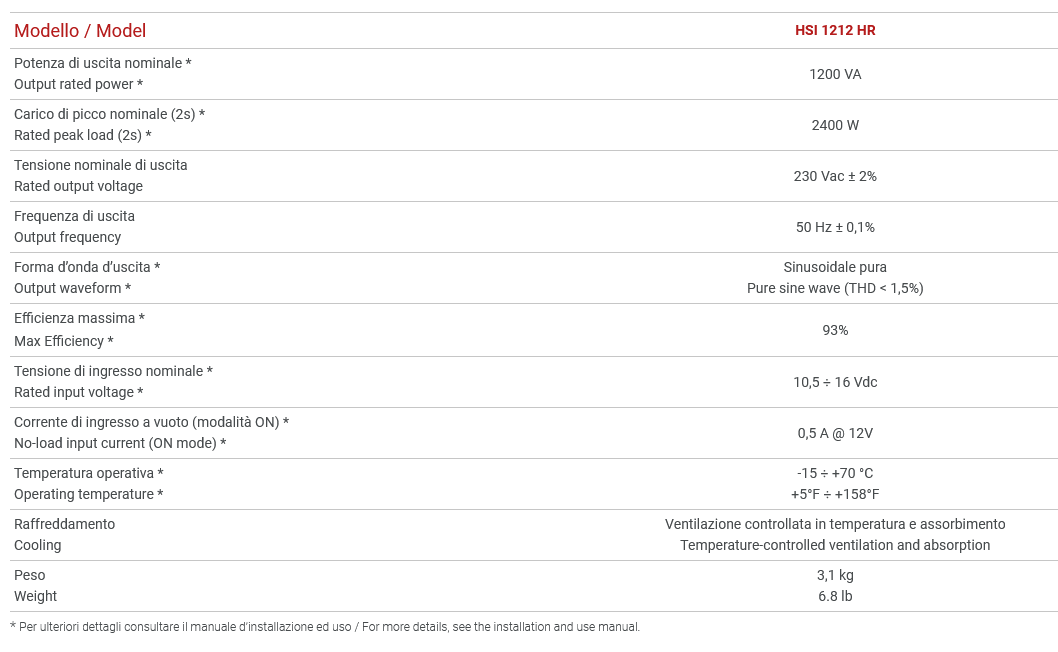

Specifications

Dimensions

Manuals

SKU: HSI1216 HR

Model1216HR 230VAC 1600VA
DisplaySa displejom
Voltage (V)12V
Weight (kg)3.1
Length (mm)300.0
Height (mm)80.0
Width (mm)170.0
BrandQuick

Images

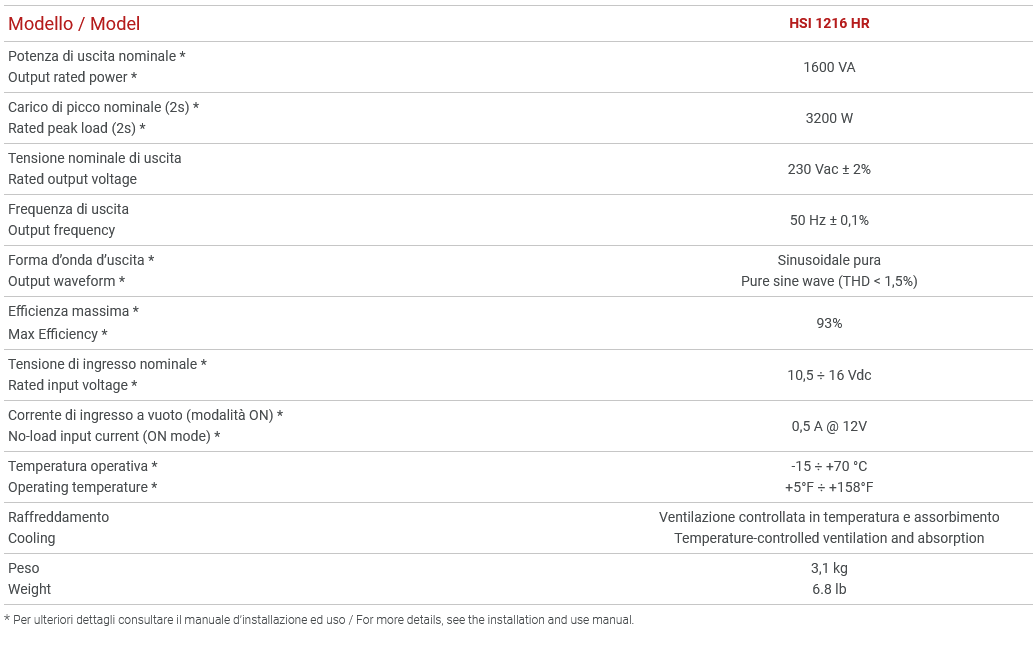

Specifications

Dimensions

Manuals

SKU: HSI2412 HR

Model2412HR 230VAC 1200VA
DisplaySa displejom
Voltage (V)24V
Weight (kg)3.1
Length (mm)300.0
Height (mm)80.0
Width (mm)170.0
BrandQuick

Images

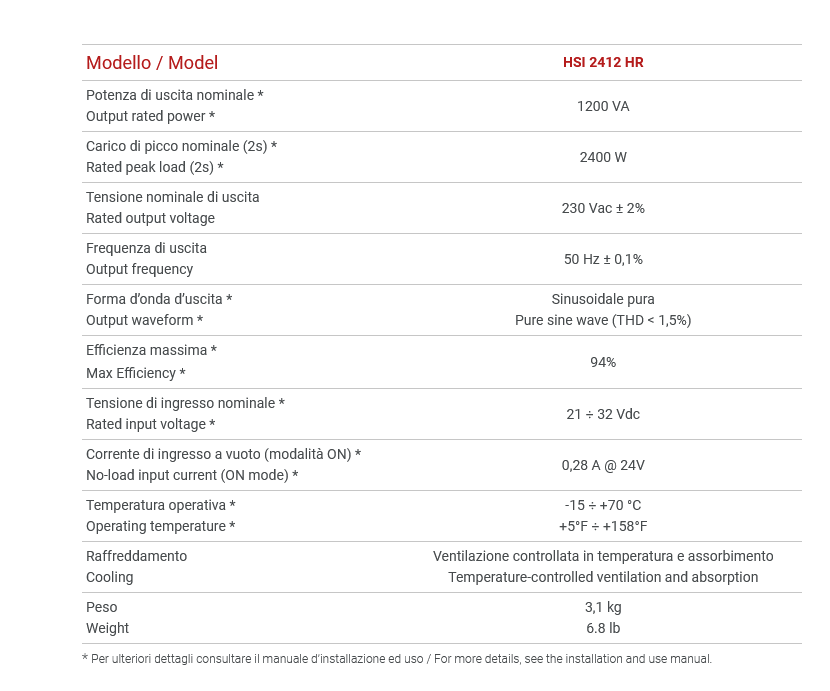

Specifications

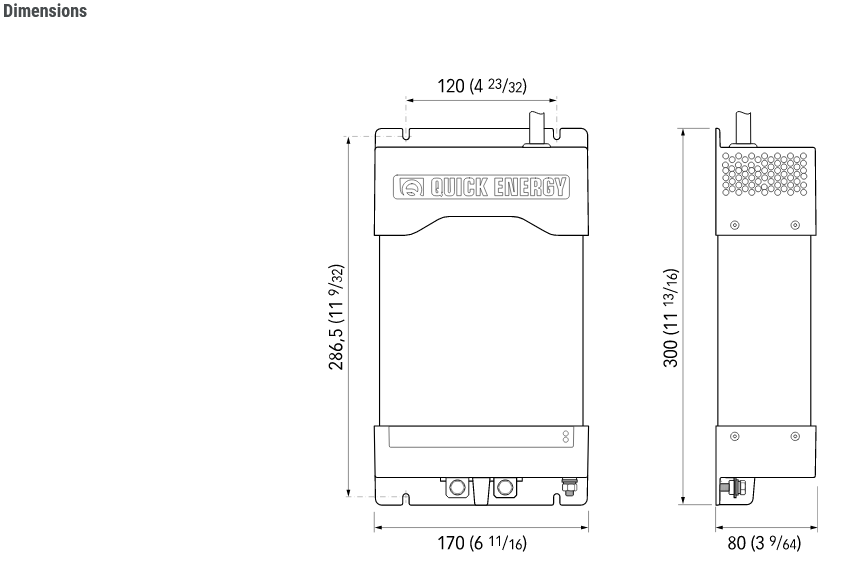

Dimensions

Manuals
