Quick Eagle E1 – E3 anchor windlass
Recommended price: 1.486,25 € Shop price: 1.040,00 €

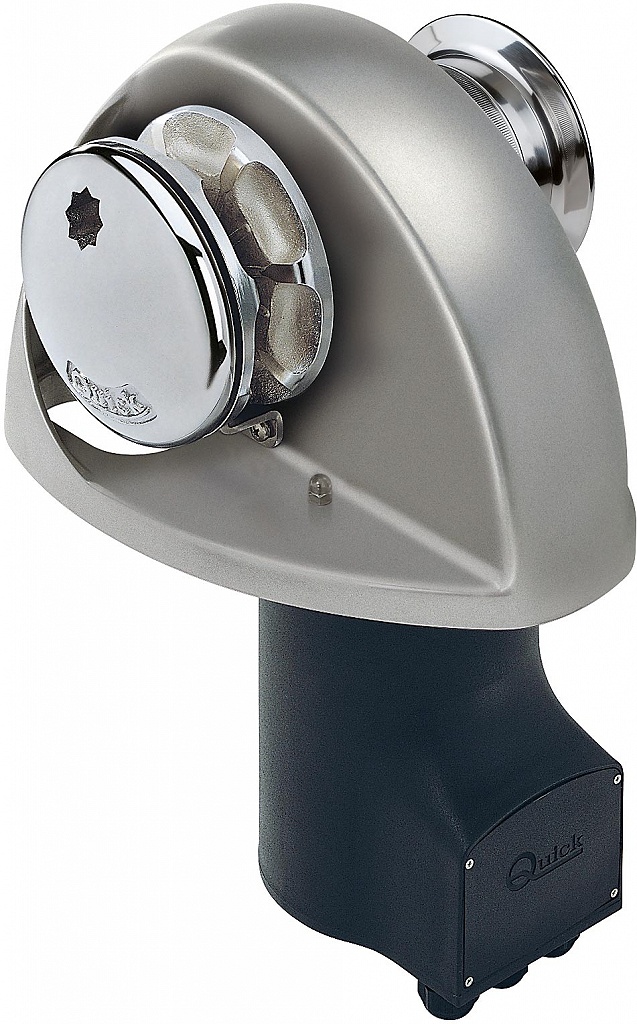

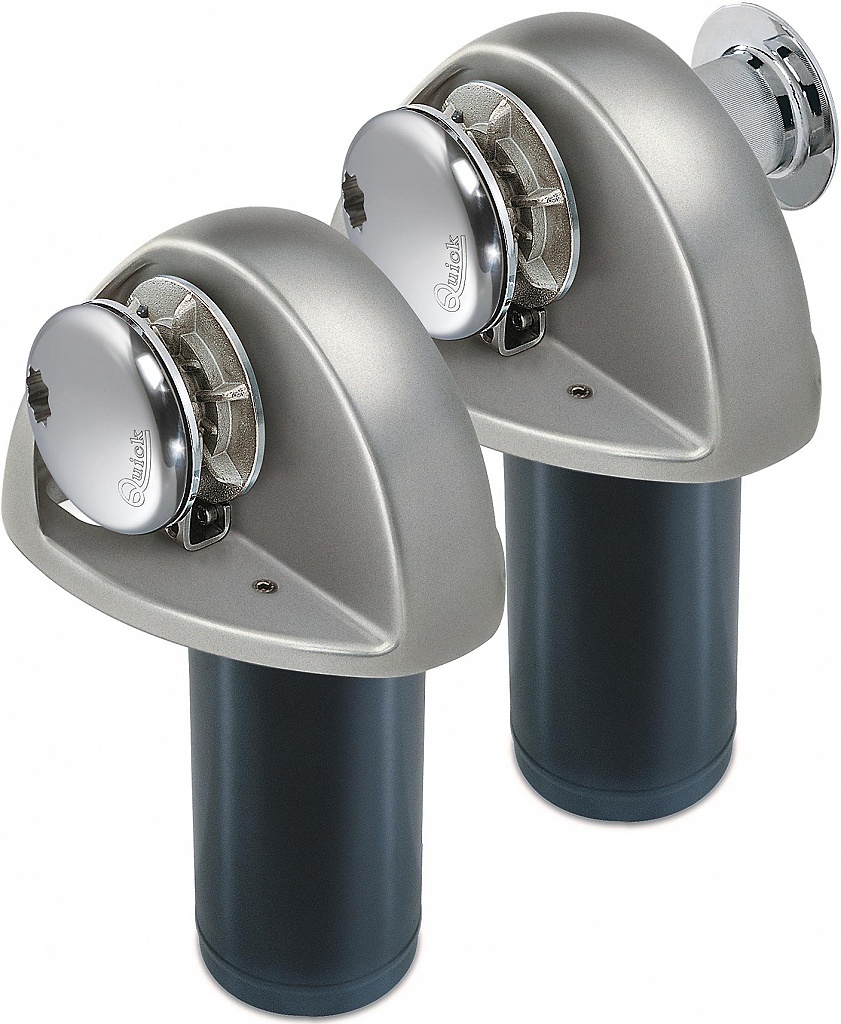

The Quick Eagle (E1–E3) is an anchor windlass with a horizontal shaft and vertical motor, designed for boats from 6 to 13 meters (20–43 ft), depending on the model.
The Eagle is available in different versions, with 500W and 1000W models, with or without a drum (rope attachment), with a 6 mm or 8 mm gypsy, and in 12V.
Models:
E1 500 W: 6–9 m (16–23 ft)
E3 1000 W: 10–13 m (33–43 ft)
The indication may vary depending on the type of boat and the type of anchor.
Description
The Eagle (E1–E3) is a windlass for horizontal applications, perfect for boats with limited deck space.
This unit is made of anodized aluminum, a durable material designed to withstand harsh marine conditions.
Supplied with the windlass, solenoid unit, handle, and mounting hardware.

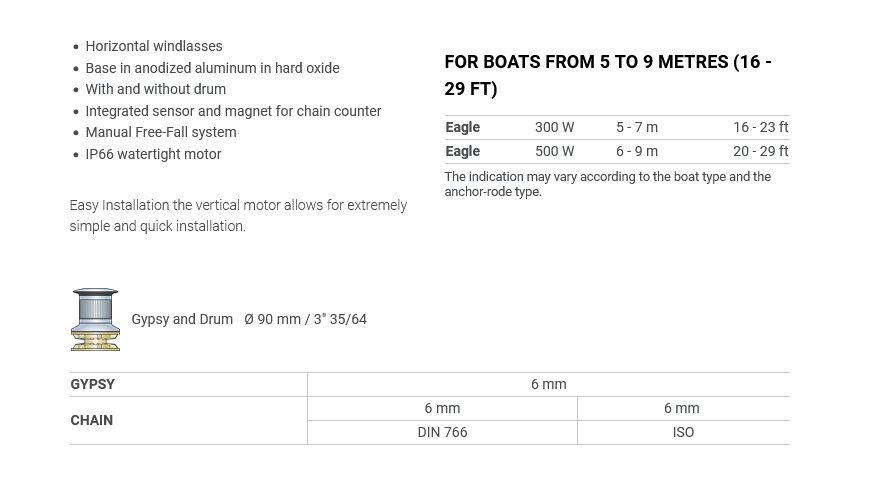

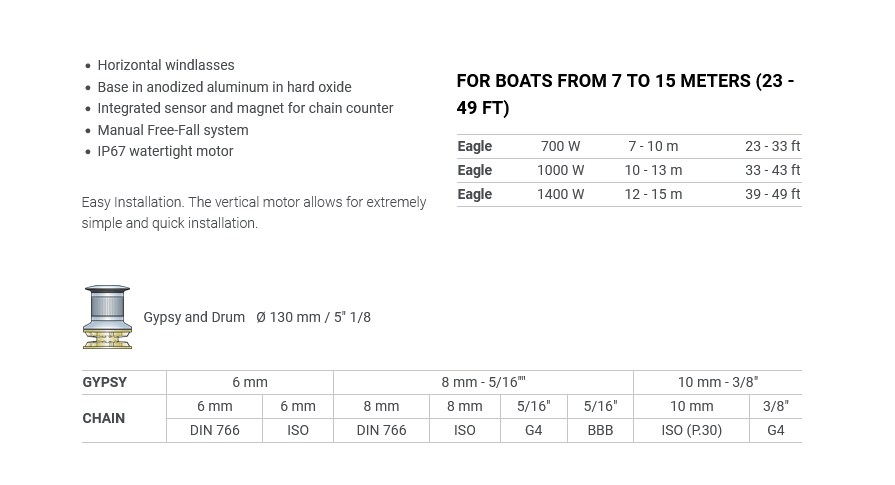

Additional features include:
– Anodized aluminum base

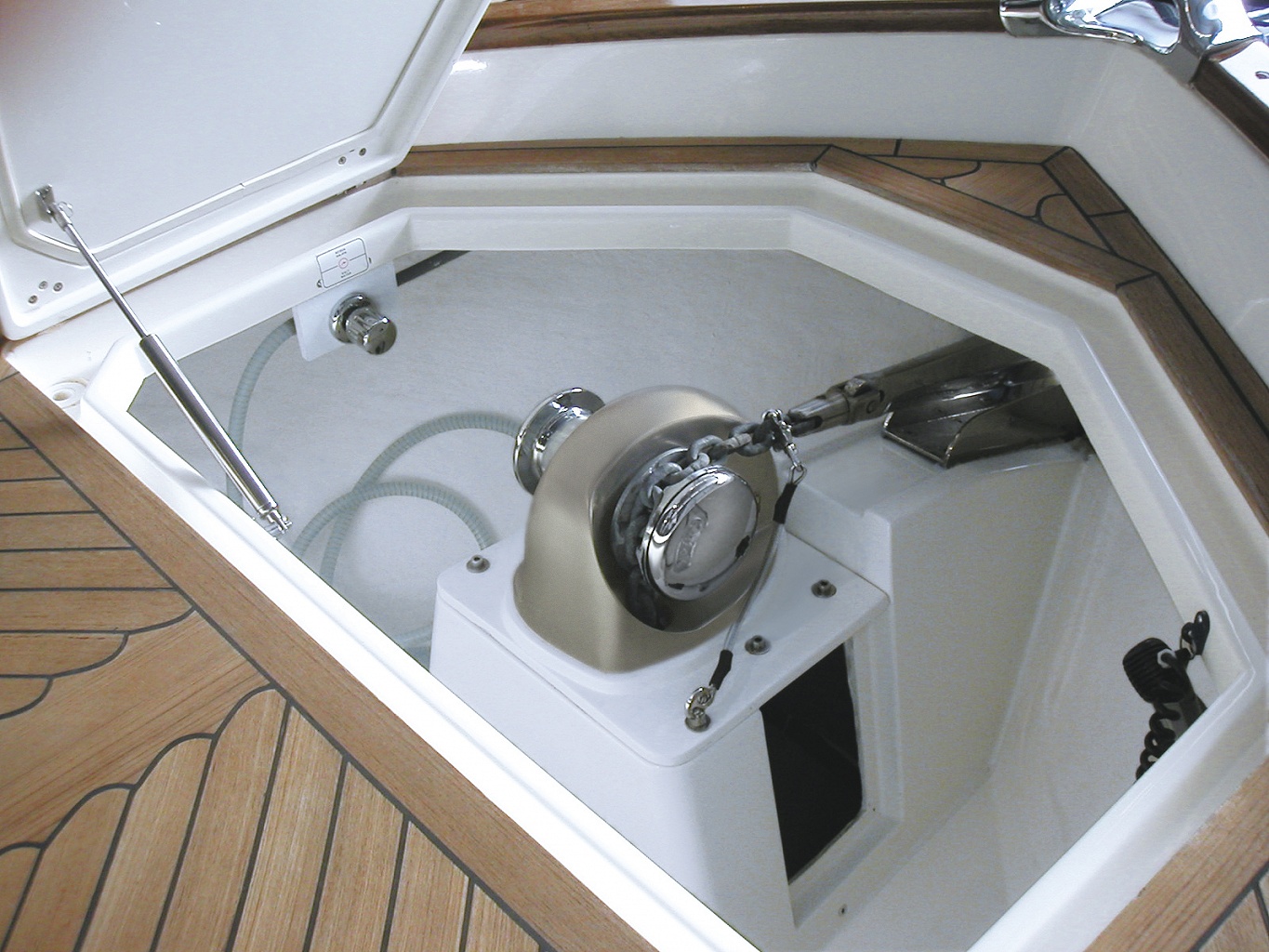

– With drum (rope attachment) – optional
– Integrated sensor and magnet for chain counter
– Manual free-fall system
– IP66 waterproof motor housing
– Gypsy: 6 mm or 8 mm (depending on the model)

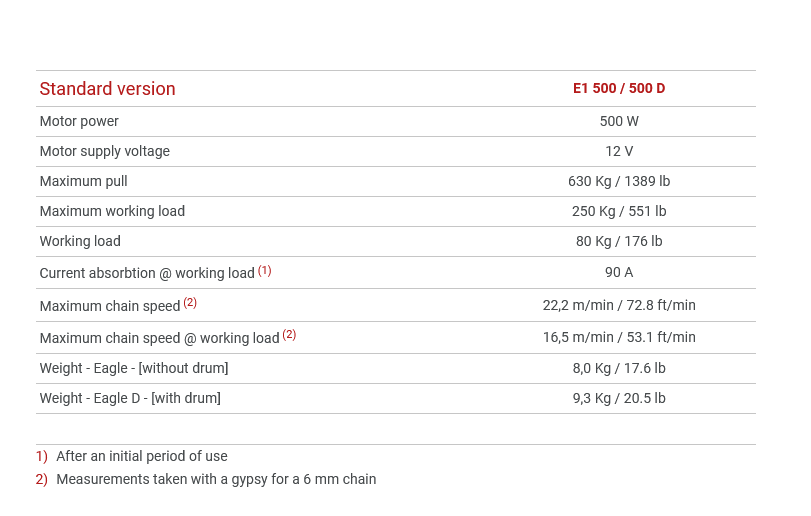

Technical specifications of variants
SKU: E512
| Rope attachment (Drum) | NE |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 8 |
| Length (mm) | 200 |
| Height (mm) | 291 |
| Width (mm) | 163 |
| Brand | Quick |
Images
Specifications

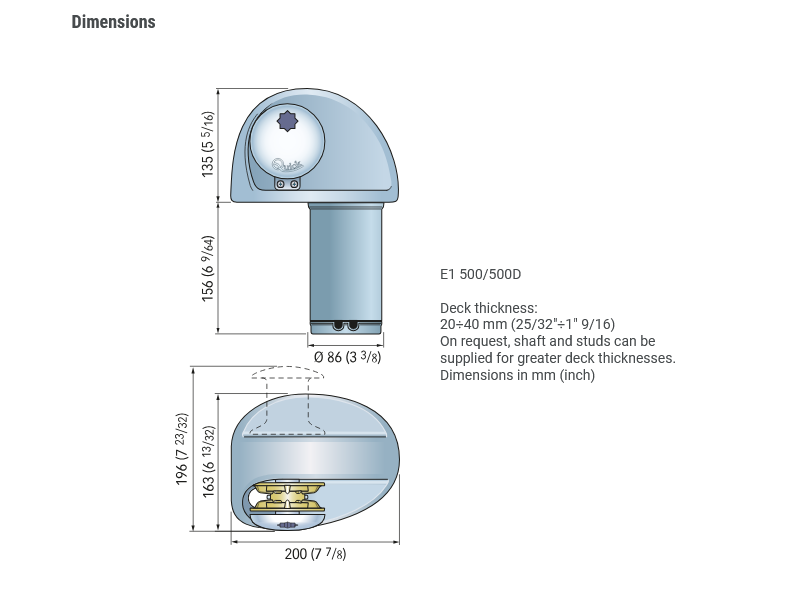

Dimensions

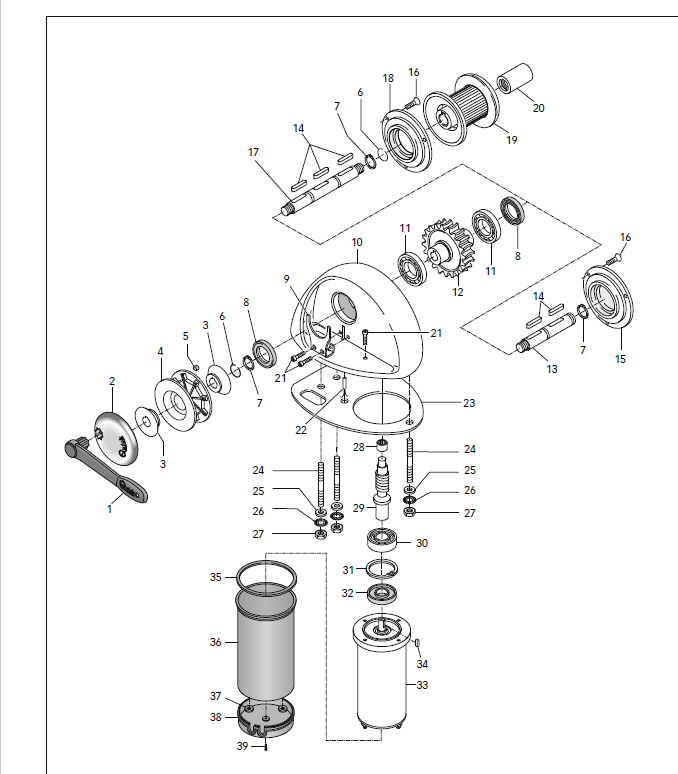

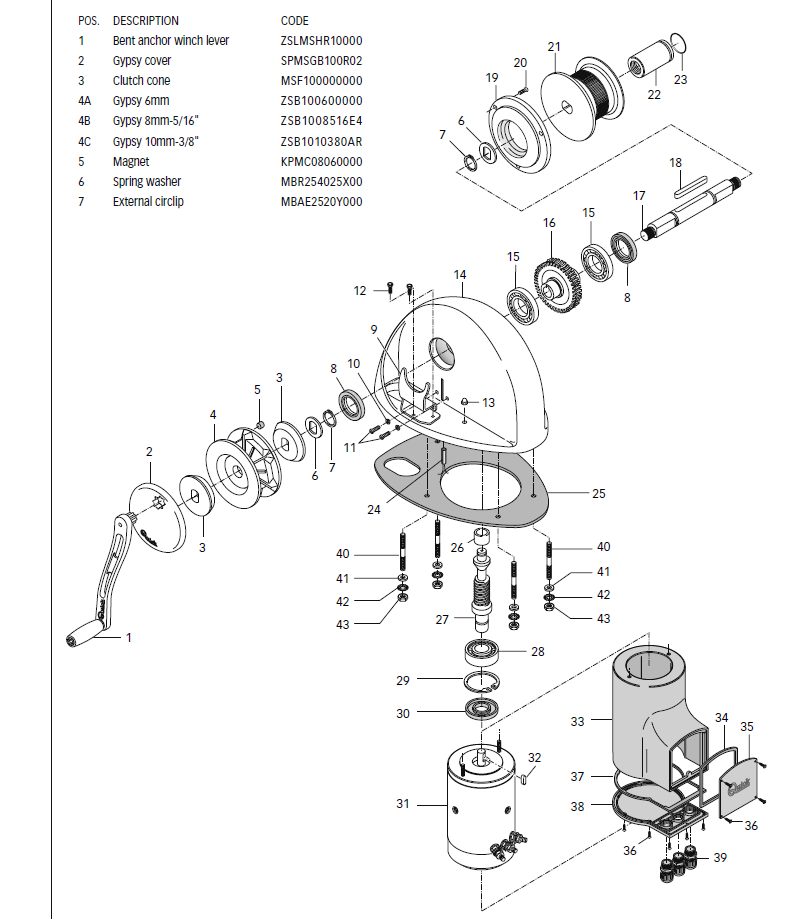

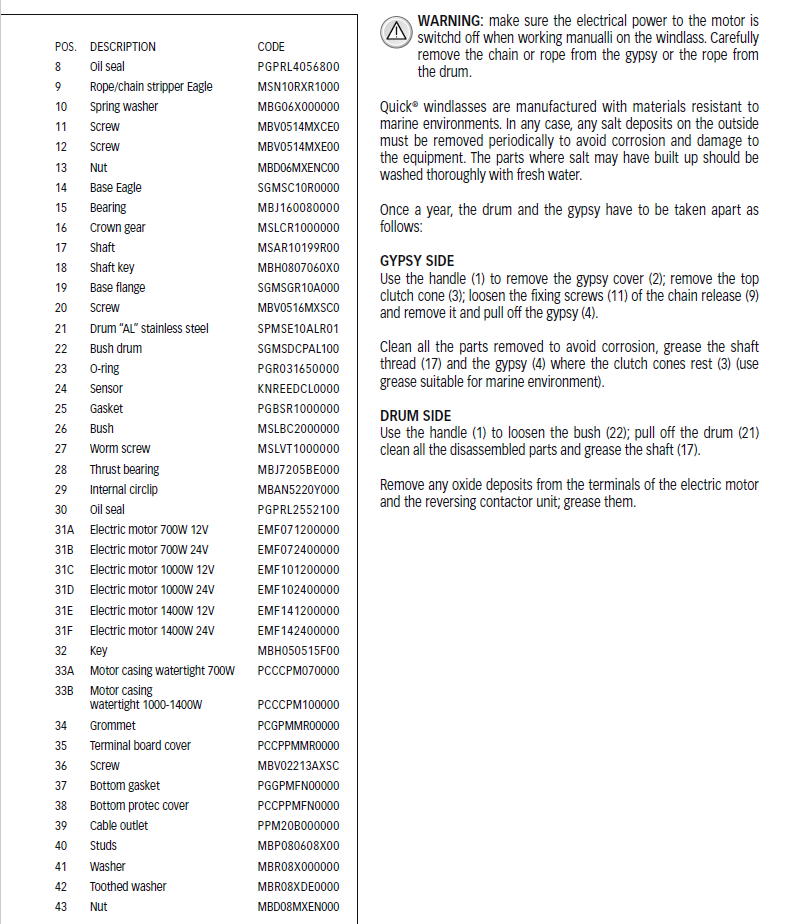

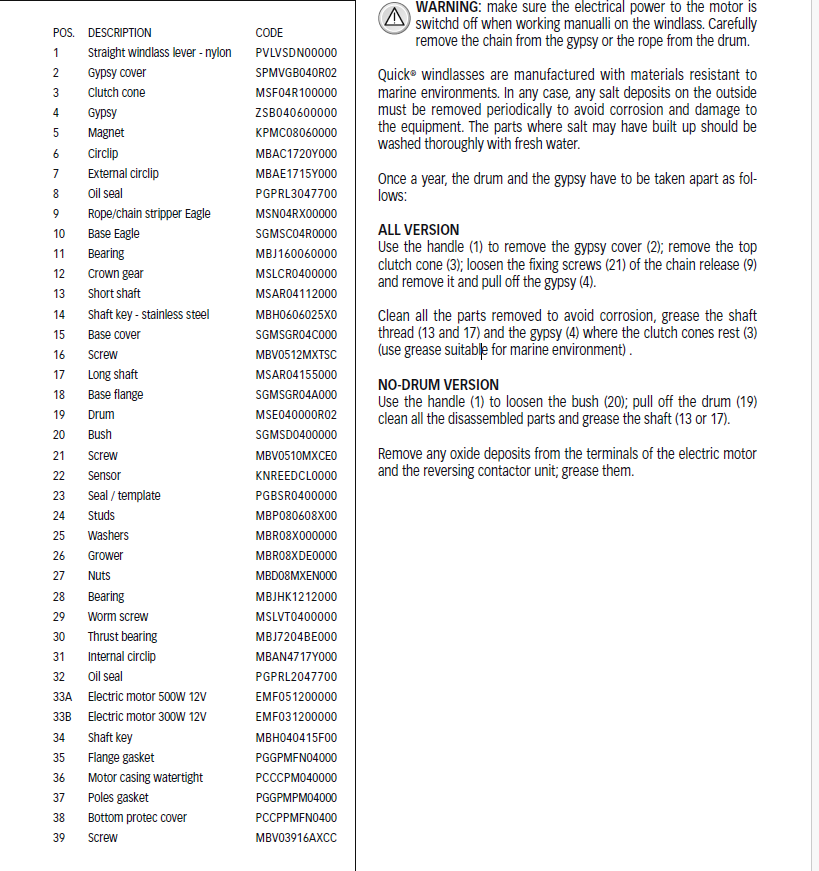

Components and spare parts
Manuals
Drill schemes
SKU: E512D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 9.3 |
| Length (mm) | 200 |
| Height (mm) | 291 |
| Width (mm) | 196 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
Drill schemes

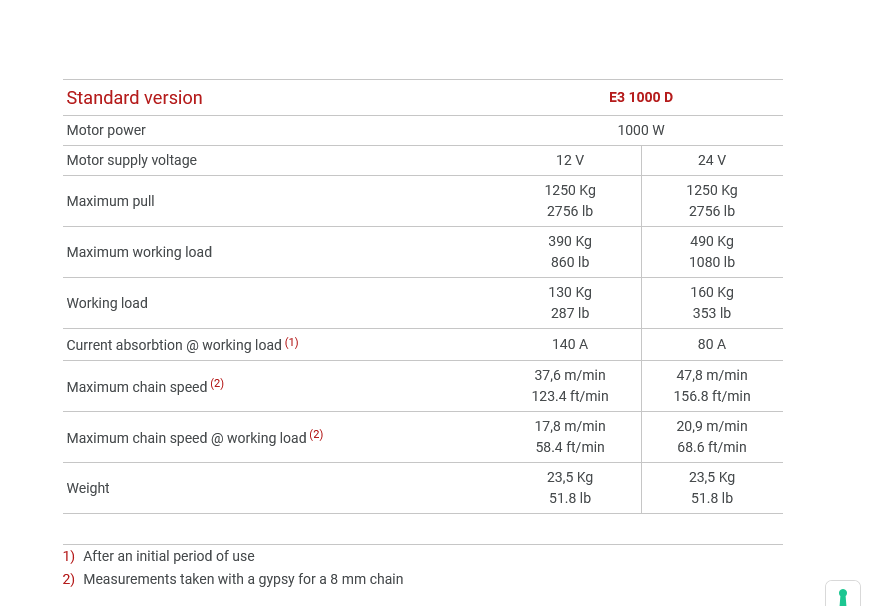

SKU: E 1012 D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 1000W |
| Voltage (V) | 12V |
| Sprocket | 6mm |
| Weight (kg) | 23.5 |
| Length (mm) | 295 |
| Height (mm) | 415 |
| Width (mm) | 239.4 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
Drill schemes
SKU: E 1012 D
| Rope attachment (Drum) | DA |
|---|---|
| Power | 500W |
| Voltage (V) | 12V |
| Sprocket | 8mm |
| Weight (kg) | 23.5 |
| Length (mm) | 295 |
| Height (mm) | 415 |
| Width (mm) | 239.4 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
