Quick PTR deck capstan
Recommended price: 1.588,13 € Shop price: 1.111,00 €
Quick PTR deck capstan with 30 m rope.
Suitable for boats from 6 m to 12 m (20–39 ft), depending on the model.
Available in different versions, with 150W, 250W, and 350W models, and 12V or 24V.

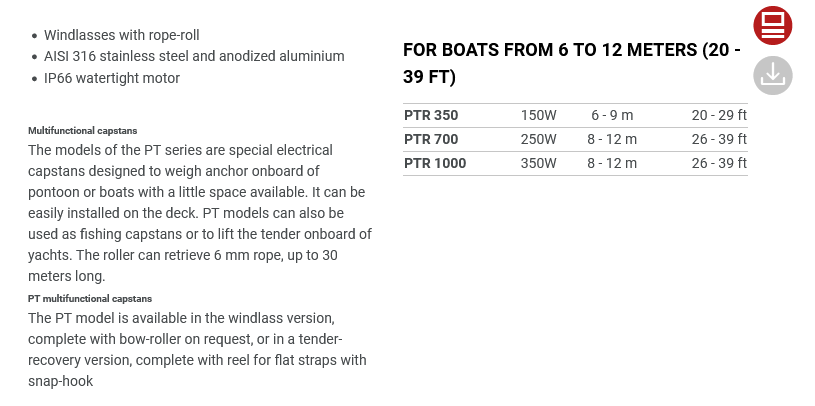

Description
The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. They can be easily installed on the deck. PT models can also be used as fishing capstans (PTR) or to lift the tender onboard of yachts (PTG). The roller can retrieve 6 mm rope, up to 30 meters long.
The PT model is available in an anchor winch version (PTR), with an optional bow roller, or in a tender lifting system version (PTG), which comes with reel for flat straps with snap-hook.
Technical specifications of variants
SKU: PT350R
| Power | 150W |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 10 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images

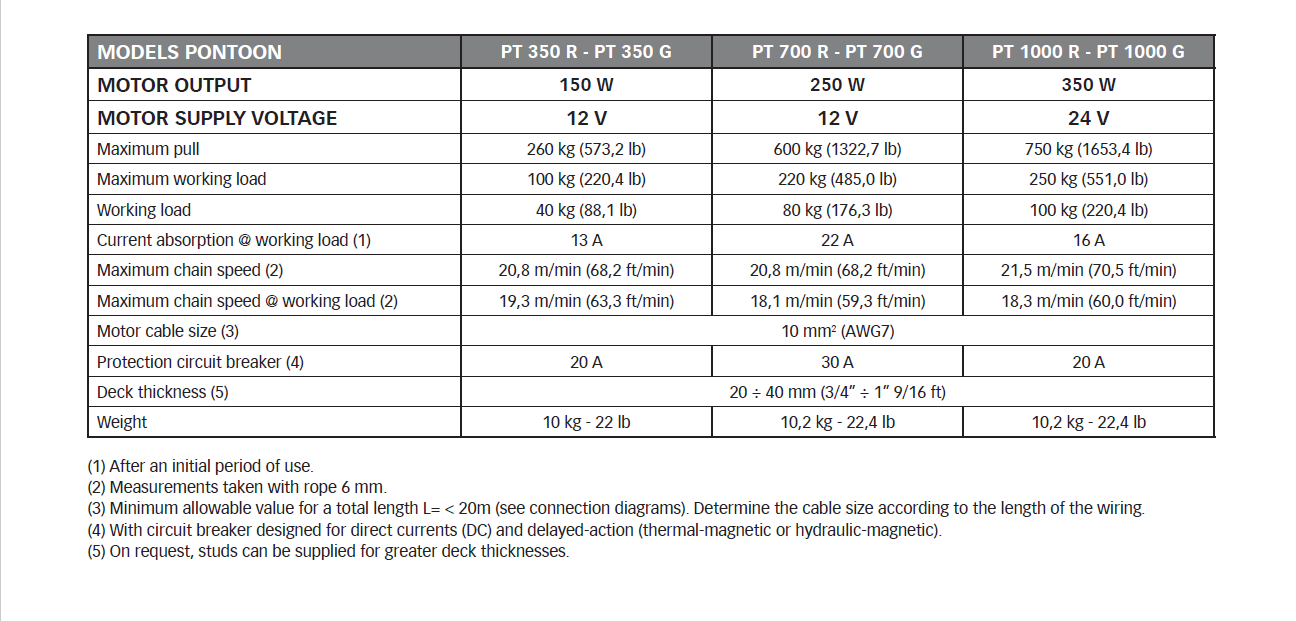

Specifications

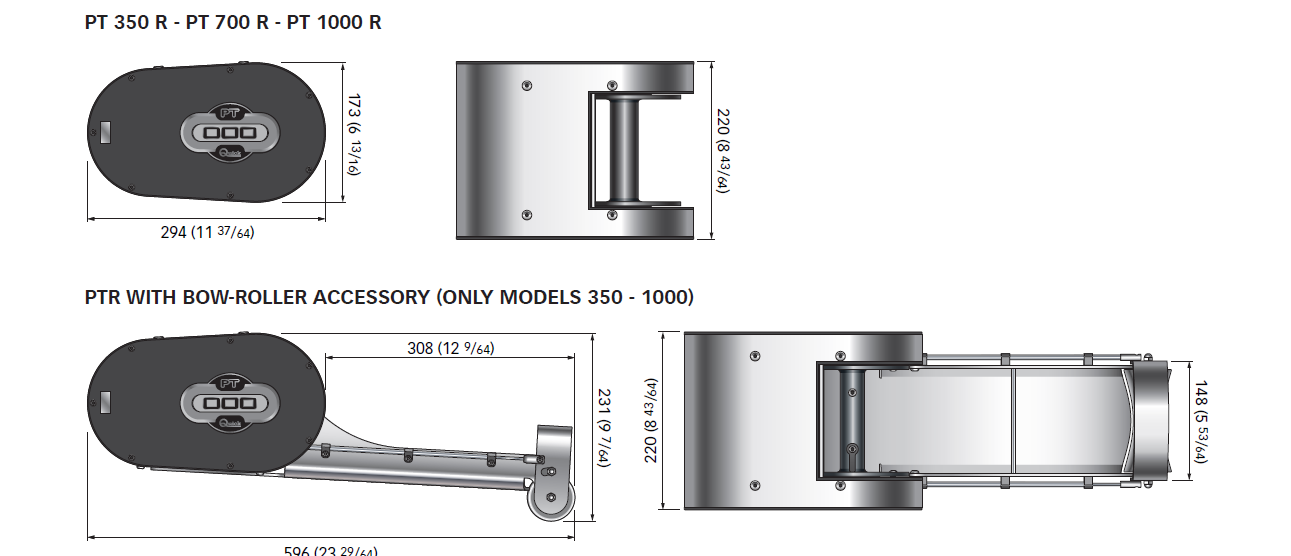

Dimensions

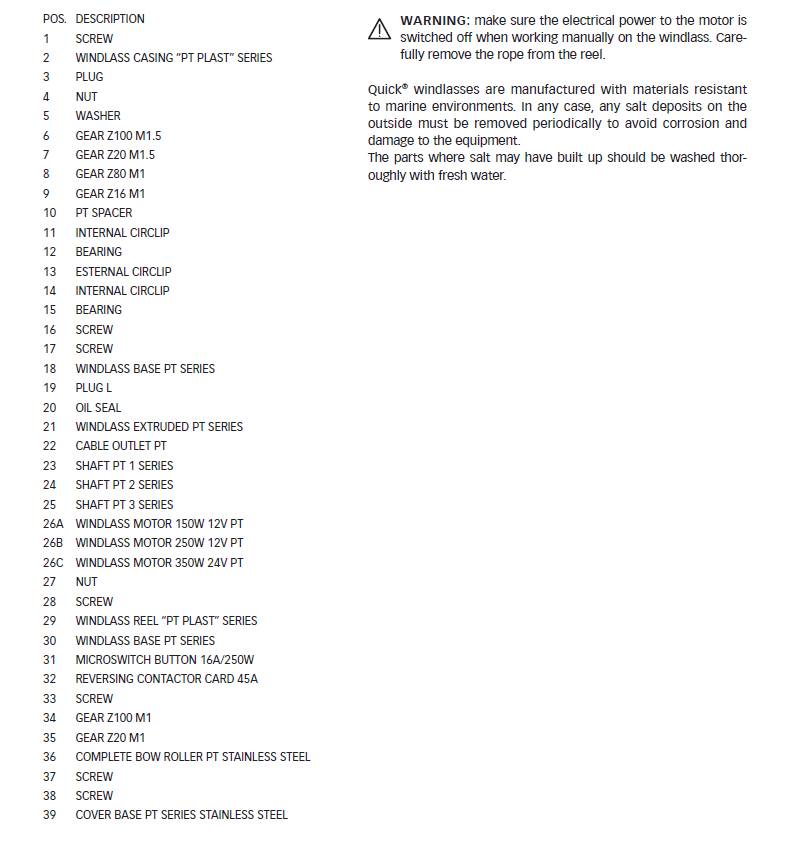

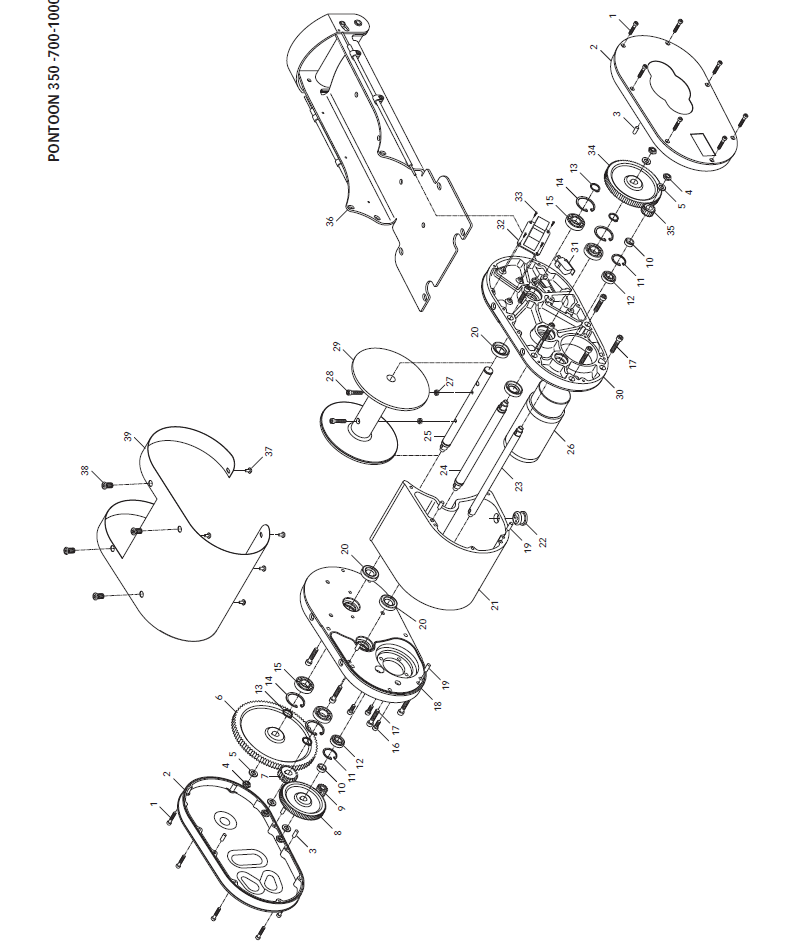

Components and spare parts
Manuals
Drill schemes
SKU: PT700R
| Power | 250W |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 10.2 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
Drill schemes
SKU: PT1000R
| Power | 350W |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 10.2 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
