Quick PTG deck capstan
Regular price: 1.906,25 € Webshop price: 1.334,00 €
Quick PTG deck capstan with 7.5 m flat strap with spring catch.
Available in different versions, with 150W, 250W, and 350W models, and 12V or 24V.
Description
The models of the PT series are special electrical capstans designed to weigh anchor onboard of pontoon or boats with a little space available. It can be easily installed either above or below the deck. PT models can also be used as fishing capstans (PTR) or to lift the tender onboard of yachts (PTG). The roller enables the winding of a rope with a diameter of 6 mm and a length of up to 30 meters.
The PT model is available in the windlass version, complete with bow-roller on request or in a tender-recovery version, complete with reel for lines snap-hook.
Technical specifications of variants
SKU: PT350G
| Power | 150W |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 10 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images
Specifications

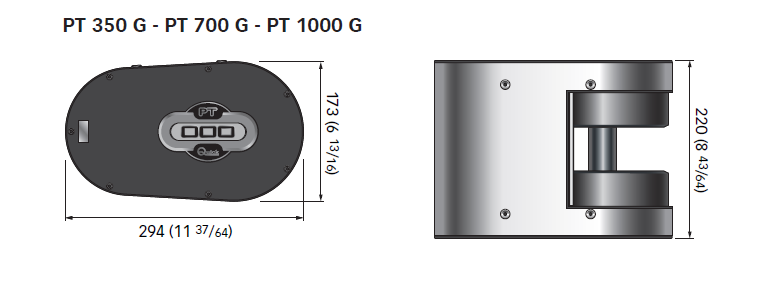

Dimensions

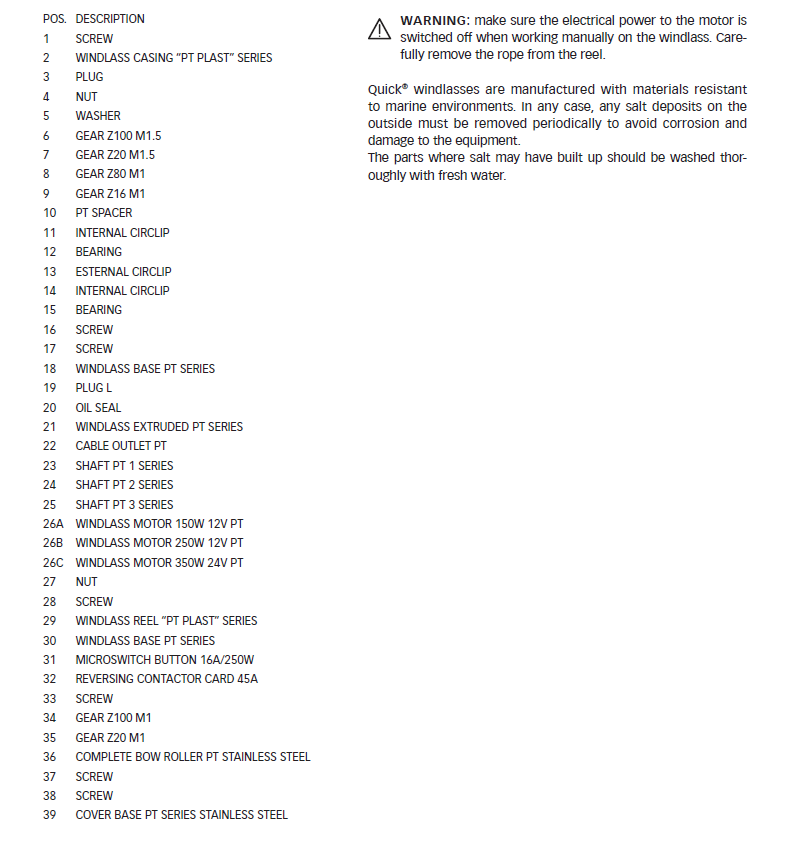

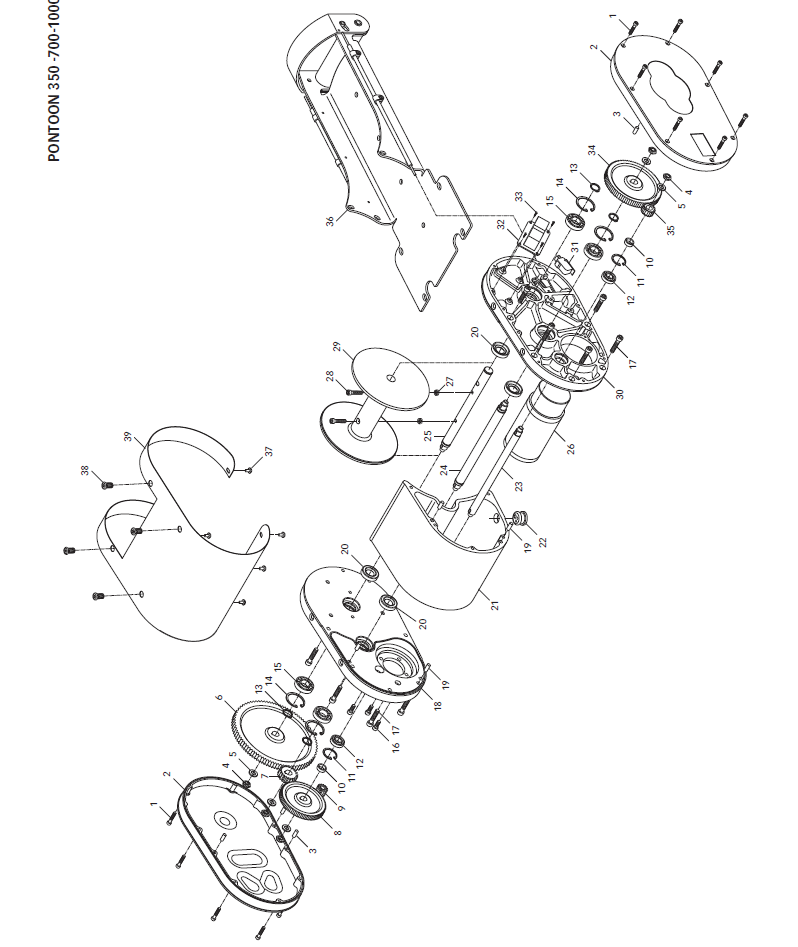

Components and spare parts
Manuals
Drill schemes
SKU: PT700G
| Power | 250W |
|---|---|
| Voltage (V) | 12V |
| Weight (kg) | 10.2 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
Manuals
Drill schemes
SKU: PT1000G
| Power | 350W |
|---|---|
| Voltage (V) | 24V |
| Weight (kg) | 10.2 |
| Length (mm) | 294.0 |
| Height (mm) | 173.0 |
| Width (mm) | 220.0 |
| Brand | Quick |
Images
Specifications
Dimensions
Components and spare parts
